DTMB Receiver (Decoder) to IP Stream Output (Industrial Model)
I. Product Overview
The HT31XXP series DTMB clear stream signal (Tuner) to IP & ASI all-in-one unit is a cost-effective device newly developed for converting Tuner signals to IP output. It supports 4/8-channel Tuner input (DVB-S2/DVB-C/DVB-T/ISDBT/DTMBT optional), 1 Gigabit Ethernet input/output, and 2 ASI input/output ports. Supports SPTS and MPTS output.
Featuring high integration, high performance and low cost, a single unit integrates a complete front-end system, making it ideal for digital TV transmission systems in hotels, clubs, hospitals, bath centers, etc. It is suitable for receiving local terrestrial signals, converting front-end signals to IP for multi-view monitoring and front-end system conversion.
II. Key Features
? Supports 4/8-channel Tuner input
? Supports 1 Gigabit Ethernet input & output, 4 MPTS outputs, 256 SPTS outputs, UDP/RTP protocols
? Supports 2 ASI input/output or 1 input 1 output (optional)
? LCD and button control (optional)
? Web-based network management
? Supports online firmware upgrade
III. Technical Specifications
| Input | Tuner (4/8 tuner)
Note: Tuner type (DVB-S2/DVB-C/DVB-T/ISDBT/DTMBT) is optional
Please specify receiving standard when ordering |
| 128 IP address input; ASI input (optional) |
| Output | ASI output (optional) |
| IP output (256 SPTS and 4 MPTS), UDP/RTP protocols |
| System | Web management, supports network upgrade |
| Chinese/English user interface |
| General | Dimensions (L×W×H) | 440mm × 270mm × 40mm |
| Weight | 3–5 kg |
| Temperature Range | 0~40℃ (operating); -20~80℃ (storage) |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | <30W |

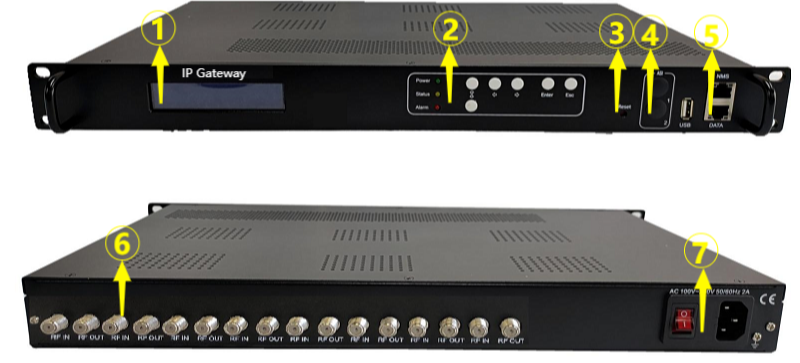

IV. Structure Diagram
| 1. | LCD display panel |
| 2. | Buttons and indicators |
| 3. | IP reset button (hold 3s until red light flashes) |
| 4. | ASI interface |
| 5. | NMS: Management port default IP 192.168.0.136 |
| DATA1: IP stream input/output |
| 6. | Tuner input interface |
| 7. | Power switch & connector |
Note: ASI, LCD and button control are optional functions.
