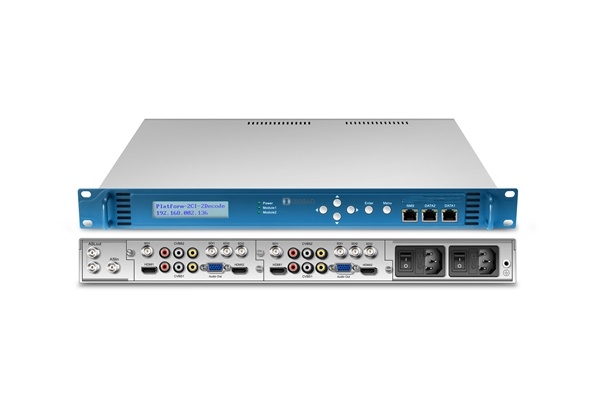

HD3204HD 4-channel HD decoder supports 4-channel MPTS input, 1-channel ASI input, 4 independent decoding outputs, and supports AVS+/H.265/H.264/MPEG2 decoding. Interfaces: 8-channel HD-SDI/4-channel HDMI/4-channel CVBS/4-channel AES-EBU/4-channel analog stereo, supports multiple resolution outputs including 4K/2K/1080P/1080I/720P/576I/480I. 2. Product Features Supports multiple input modes: IP/ASI Rich interfaces: CVBS/HDMI/SD/HD-SDI/AES/EBU/analog stereo/ASI/IP Supports AVS+/H.265/H.264/MPEG2 decoding USB port supports power-on upgrade function. Supports Biss_1/Biss_E descrambling Supports DRA/AV3/AAC/MPEG audio formats Compatible with HD and SD signals. Resolution can be auto-detected or manually set. User-friendly interface and easy-to-operate menu system, all functions can be completed on the LCD. B/S-based Web network management supports dynamic monitoring of signal input strength, SNR, and signal unlock alarm. 3. Technical Specifications ASI Input / Output | ASI Input Interface | 1×BNC, 75Ω | ASI Output Interface | 2×BNC, 75Ω | Standard | DVB-ASI, EN50083-9 | Output Bitrate | ≤200Mb/s | IP Input / Output | Interface | 2×RJ-45, 10/100/1000 Base-T | Effective Bitrate | 900Mb/s（1000 Base-T） | Frame Length | Adjustable (1-7)×188 bytes | Protocol | UDP/RTP, Unicast, Multicast (MPTS/SPTS) | HDMI Output | Standard | 4×HDMI (up to 4K) | Resolution & Frame Rate | 4K30/1080P60/1080P50/1080i60/1080i50/720p60/720p50/576P/576I/480P/480I | Embedded Audio | 1×Stereo | Video Decoding | Standard | MPEG-2/MPEG-4/H.264 AVC/H.265/AVS+ | Audio Decoding | Standard | MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC 2-CHANNEL/5.1 CHANNEL AC3/DRA | HD/SD-SDI Output | Interface | 8×BNC, 75Ω (2 SDI outputs per channel) | SD-SDI | SMPTE 259M, 270 Mb/s (10bit) | HD-SDI | SMPTE 292M, 1.485 Gbit/s (20bit) | Output Level | 800mV±20mV p-p | Analog Audio Output | Interface | 4×RCA, 4×XLR | Audio Mode | Left, Right, Dual Mono, Stereo | Digital Audio Output | Interface | 4×AES/EBU | Analog Video Output | CVBS Interface | 4×RCA, 75Ω | Output Level | 1.0 Vp-p±5% (Test Stream) | CVBS System | PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ | Video S/N Ratio | ≥ 56dB | Video Sync Amplitude | 300±20mV p-p | Video Amplitude-Frequency Characteristic | ±0.8 dB (4.8MHz) ±1 dB (4.8-5MHz) +0.5/-4 dB (5.5MHz) | Video Output Amplitude | 700±30mV p-p | Differential Gain | ≤ 8% | Data Output | Subtitle | DVB/EBU | Closed Caption | EIA 608, EIA 708, EIA 608-to-708 | Local & Remote Management | Interface | 1×RJ-45, 10/100 Base-T | Remote Control | HTTP Web | Local Control | Front Panel Buttons & LCD | Upgrade | IP or USB | Physical Specifications | Dimensions | 450×350×44mm | Weight | Net Weight: 5KG | Power | AC 90V～250V, 50/60Hz | Power Consumption | 24W (Excluding LNB Power) | Operating Temp | 0 ~ 45℃ | Storage Temp | -10 ~ 60℃ | Humidity | 10 ~ 90% (Non-condensing) |
|
