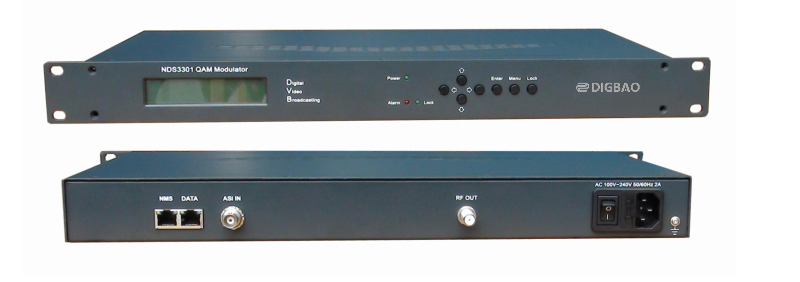

NDS3301 QAM Modulator (DVB-C Digital Modulator with ASI Input and RF Output)

1 Product Overview

The NDS3301/A QAM Modulator is a high-performance device developed in compliance with the European digital video broadcasting standard for cable TV DVB-C (EN 300 429). It receives TS transport streams from encoders, multiplexers, DVB gateways, scramblers, video servers and other equipment, and processes the streams through RS coding, convolutional interleaving and QAM modulation. The unit features 1×ASI input and 1×RF output, and supports remote management via NMS network management system.

It is widely used in broadcasting stations, media convergence centers, headend TV rooms, interactive services, news gathering and other applications.

2 Key Features

• Compliant with DVB-C (EN 300 429), ITU-T J.83A/B/C and GB/T 170 standards
• Symbol rate range: 5.0 Msps ~ 9.0 Msps
• 5 constellation modes: 16QAM, 32QAM, 64QAM, 128QAM and 256QAM
• 1×ASI input, 1×RF output
• Large buffer for anti-burst stream processing
• Supports intelligent null packet deletion and automatic bitstream stuffing
• Supports precise PCR adjustment
• Supports NIT table insertion
• Real-time monitoring of effective input bit rate
• Supports PID filtering, remapping and synchronous PSI/SI table updating
• RF output frequency range: 30 MHz ~ 960 MHz, 1 kHz step
• RF output attenuation: -30 dBm ~ 0 dBm, 0.1 dB step
• LCD display and pushbutton operation
• Supports network management system (NMS)

3 Technical Specifications

Input

1×ASI input, BNC connector, 75 Ω impedance

Modulation

QAM channel: 1

Standards: EN 300 429 / ITU-T J.83A/B/C, GB/T 170

Symbol rate: 5.0 ~ 9.0 Msps, 1 ksps step

Constellation: 16, 32, 64, 128, 256QAM

FEC: RS(204, 188)

RF Output

Connector type: F-type, 75 Ω impedance

RF frequency range: 30 ~ 960 MHz, 1 kHz step

Output attenuation: -30 dBm ~ 0 dBm, 0.1 dB step — NDS3301

Output attenuation: -16 dBm ~ +12 dBm, 0.1 dB step — NDS3301A

System

LCD display / pushbutton control, NMS network management

Chinese / English user interface

Supports network upgrade

General

Dimensions (L×W×H): 482 mm × 285 mm × 44 mm

Weight: 2 kg

Temperature: 0 ~ 45 ℃ (operating); -20 ~ 80 ℃ (storage)

Power supply: AC 110 V ±10%, 50/60 Hz; AC 220 V ±10%, 50/60 Hz

Power consumption:<25 W

Ordering Information

1. NDS3301: Output level 105–108 dBμV
2. NDS3301A: Maximum output level 115 dBμV
