4-in-1 AVS+/DRA Encoder & Transcoder
Product Introduction:

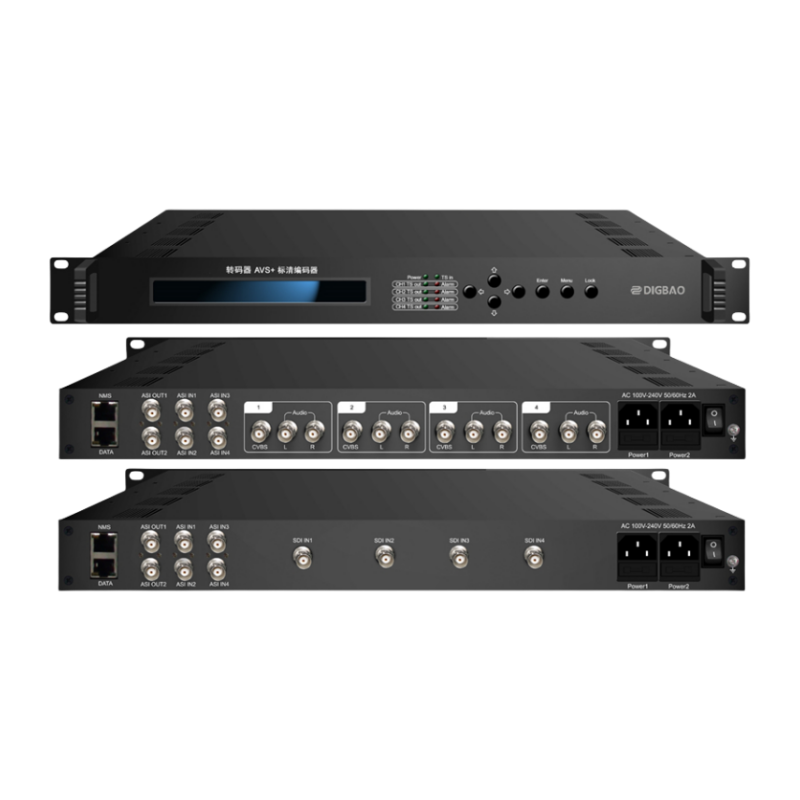

The 4-in-1 AVS+ encoder & transcoder is a newly developed broadcast-grade device compliant with the national standard GY/T257.1-2012. It is equipped with 4-channel CVBS video and unbalanced audio inputs, or 4-channel SD-SDI interfaces, 4 ASI input ports, and 1 IP input port. The equipment can encode 4 channels of SD audio and video signals. It can also transcode TS streams from 4 ASI inputs and 1 IP input into AVS/AVS+ program streams (supports up to 4 programs). The device features 1 group (2 channels) of identical ASI output ports and IP output (supports SPTS, MPTS). Adopting advanced audio and video encoding algorithms, it achieves a far higher compression ratio than the traditional MPEG-2 standard under the same source video quality. Therefore, it is widely applicable in digital television broadcasting systems (terrestrial, satellite, cable, etc.), IPTV servers, streaming media service systems, and more.
Key Features:
? Compliant with Chinese Audio Video Coding Standard AVS+ (GY/T257.1-2012)
? Input video formats: supports MPEG-2, MPEG-4 AVC/H.264
? Supports transcoded output video format: AVS/AVS+ video encoding
? Audio output encoding formats: DRA, MPEG-1 Layer 2
? Encodes SD programs from 4-channel CVBS or 4-channel SDI video inputs
? Supports transcoding of up to 4 channels of HD/SD input programs, outputting SD programs (either encoding or transcoding mode selectable)
? Supports 4 ASI inputs and 1 IP input
? Supports 1 group (2 channels) of identical ASI outputs and IP outputs (SPTS, MPTS)
? Single-program video output bit rate: 1.0 Mbps – 5.0 Mbps adjustable
? Total encoding-decoding latency < 1.8s; transcoding-decoding latency < 2.2s
? Video recovery time after instantaneous encoding input signal loss < 0.7s
? Adjustable audio delay
? Transcoding input supports simultaneous ASI and IP selection
? Network-based remote interactive control, management and real-time monitoring
? Supports hot-swappable redundant power supply with alarm function
? Supports temperature monitoring and alarm
? Supports LCD display, keypad operation and Web network management
Technical Specifications:
Input | 4-channel CVBS video input, BNC connector | 4-channel SD-SDI input, BNC connector |
4 groups unbalanced stereo audio input, BNC connector |
4-channel ASI input, BNC connector |
1-channel 1000M IP input (supports SPTS, MPTS) |
Video Encoding & Transcoding | Encoding Mode | AVS/AVS+ |
Resolution | 720×576 (PAL) |
Bit Rate | 1～5 Mbps |
GOP Length | Adjustable |
Total Enc-Dec Latency | < 1.8s |
Trans-Dec Latency | < 2.2s |
Video Recovery Time | < 0.7s |
Video Preprocessing | Deinterlacing, noise reduction, sharpening |
Audio Encoding | Coding Standard | DRA, MPEG-1 Layer 2 |
Sample Rate | 48 kHz |
Sample Precision | 24 bit |
Bit Rate | 32 Kbps ~ 256 Kbps |
Volume Gain | Adjustable |
PTS Delay | Adjustable |
Output | TS Output | 1 group (2 channels) identical ASI output, BNC connector |
IP Output | UDP protocol, 1000M Ethernet, unicast & multicast supported |
System | Web remote network management, Chinese UI |
Front-panel keypad parameter setup, LCD display, LED status indication |
General | Dimensions | 482mm × 461mm × 44mm |
Operating Environment | 0~45℃ (operation), -20~80℃ (storage) |
Power Supply | AC 110V±10%, 50/60Hz AC 220V±10%, 50/60Hz |
Power Consumption | < 40W |
