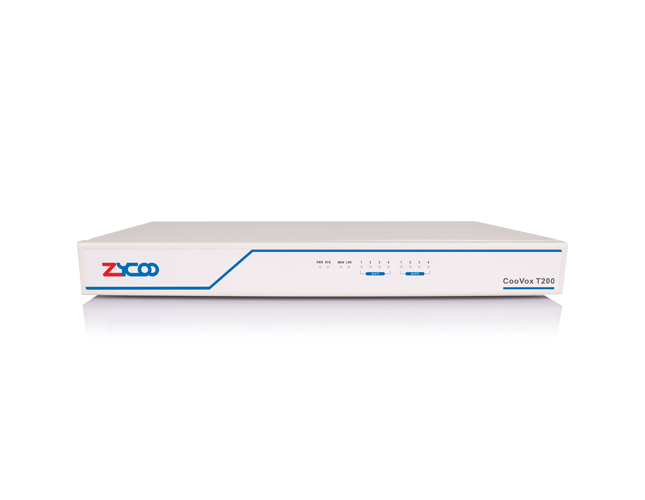

CooVox-T200 Network IP Voice Switch is a unified communication device tailored for SMEs worldwide. It is suitable for small and medium-sized enterprises with fewer than 200 employees and can
fully meet all daily office telephone business requirements. Based on the SIP standard with a modular design, it integrates VoIP telephony, virtual fax, audio conferencing, call
recording, extension BLF (Busy Lamp Field), paging and intercom functions. It supports connection to GSM, WCDMA or analog trunks, as well as broadband SIP trunks or private
network voice switching systems. With the release of v4.0 software, the T200 equipped with the new system provides users with more efficient and convenient application and
management methods, further improving enterprise deployment and communication efficiency to enhance business value.
Remote Management System
The control center can centrally manage each authorized PBX via the remote management system, enabling remote power control, real-time data monitoring, and collaborative troubleshooting.
Billing System
No third-party billing software or complex configuration required. It supports prepaid, postpaid and credit limit billing modes, as well as flexible rate rule definition.
Detailed billing records and statistical reports are supported.
Proxy Service
No fixed public IP, third-party DDNS or VPN router required. The remote proxy service enables remote SIP extension registration and web remote access, easily solving telephony
issues for remote offices.
SIP Proxy Service
In addition to built-in telephony functions, it offers high-performance compatibility with third-party SIP systems including standard SIP terminals, CRM systems and collaboration tools.
It extends IP voice communication capabilities and provides users with a streamlined unified experience.
Attendant Console
The attendant console software is an all-in-one dispatching application designed exclusively for the CooVox series. It supports Windows and macOS. Users can realize real-time paging,
emergency alerts, HD background music playback, scheduled broadcasts and more via the console software.
System Capacity
200 Extensions
Unlimited SIP/IMS Trunks
Unlimited Conference Rooms
Max 80 Concurrent Calls
Unlimited IVR Levels
500,000 Call Detail Records (CDR)
60 Concurrent Conference Participants (Recommended)
Unlimited Call Queues
1TB USB External Storage Support
Approx. 15,000 Hours Local Recording
Unlimited Phonebook Contacts
Unlimited Inbound Routes
Max 200 Paging Group Members
Unlimited Outbound Routes
Specifications
Module Slots: 2 (Compatible modules: FXO/FXS/GSM/WCDMA)
Processor: Quad-Core ARM
Built-in Storage: 8GB Industrial SD Card + 1TB Surveillance-Grade Hard Drive
USB Port (Extended Storage): 1 port (File systems: FAT16, FAT32, EXFAT, NTFS, EXT3, EXT4)
Console Port: 1 port (Baud rate: 115200)
Reset Button: Supported
Power: 100-240V~ 50/60Hz 1.5A
Security Features
iptables-based firewall
Geo-IP (IP location-based security policy)
Intrusion detection and prevention
IP Whitelist / Blacklist
Trusted extension registration IPs
Data backup and recovery
Codecs & Protocol Standards
SIP (RFC3261), IAX2
DTMF (RFC4733, SIPINFO, In-Band)
Transport Protocols: UDP, TCP, TLS, SRTP
Other Network Protocols: IPv4, IPv6, VLAN, DHCP, PPPoE, DDNS, NTP, SNTP, TFTP, SSH, HTTPS, LDAP
Video Codecs (Pass-through): VP8, H.264, H.263+, H.263, H.261
Audio Codecs: Opus, G.722, G.711 (a-law, u-law), G.729, G.726, GSM, SPEEX, AMR, AMR-WB

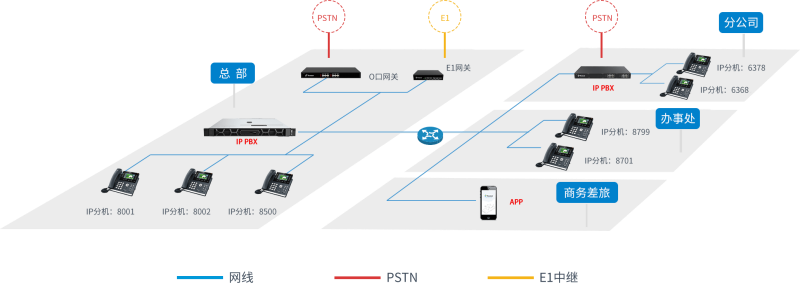

IP PBX Networking Architecture
Flexible Expansion, High Adaptability
