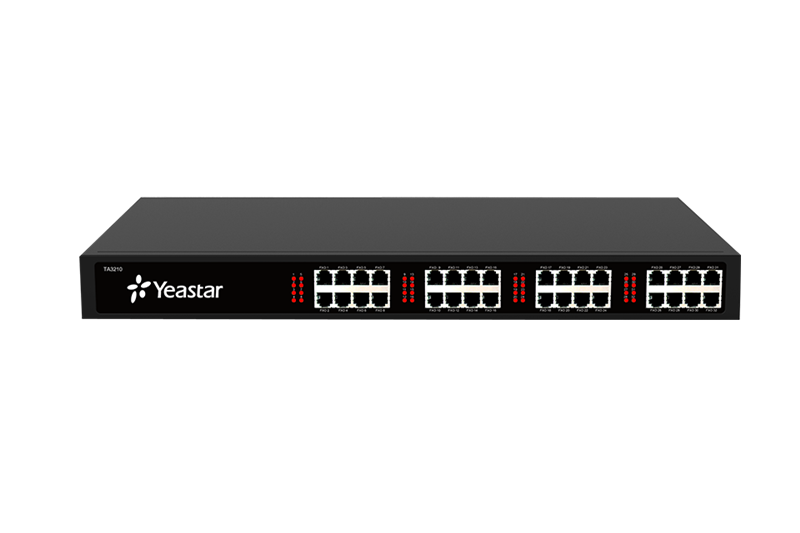

32-Port FXO Analog VoIP Gateway (Trunk Gateway)
The TA series FXO analog VoIP gateways are IP-based access gateways equipped with 4 to 32 FXO ports. Supporting standard SIP and IAX2 protocols, they deliver a cost-effective and easily deployable analog trunk expansion solution for enterprises, branch offices and remote workers.
Outstanding Performance:
Built with a high-performance processor, the FXO analog VoIP gateway features high-capacity, full-concurrent call processing capability and carrier-grade stability, making it a carrier-class FXO analog VoIP gateway.
- Supports standard SIP and IAX2 protocols
- Flexible and efficient inbound/outbound call routing
- Supports multiple HD voice codecs with advanced voice compression technology
- G.168 echo cancellation and dynamic jitter buffer technology
- Tested and certified with Elastix, BroadSoft and other industry platforms
Easy Management
Web-based management with a user-friendly interface and simple operation. All configurations can be completed via a computer without dedicated maintenance personnel.
- LED indicators clearly display system and line status at a glance
- Intuitive web management interface designed for excellent user experience, simple and fast to operate
- Provides comprehensive call records, system logs, hardware logs and debug logs
- Supports remote management for unified monitoring of all gateway status and timely administration and maintenance
Auto Provisioning
Yeastar FXO analog VoIP gateways support auto-provisioning with Yeastar IPPBX via PnP or DHCP. They also support standard management protocols TR-069 and SNMP for effortless device control.
- Auto-provisioning with Yeastar IPPBX via PnP or DHCP
- Supports TR-069 for large-scale device deployment
- Compatible with any TR-069 based ACS
- Supports SNMP for efficient network management
Green & Energy Efficient
Available in book-style wall-mount or 1U rack-mount designs to suit various working environments. With low power consumption and high stability, it meets modern green office requirements.
| Item\Model | TA410 | TA810 | TA1610 | TA2410 | TA3210 |
| FXO Ports (RJ11) | 4 | 8 | 16 | 24 | 32 |
| RJ21 Port | — | — | 1 | 1 | 2 |
| WAN Port | — | — | 1× 10/100Mbps Auto-Negotiation Ethernet (RJ45) |
| LAN Port | 1× 10/100Mbps Auto-Negotiation Ethernet (RJ45) |
| VoIP Protocols | SIP (RFC3261), IAX2 |
| Transport Protocols | UDP, TCP, TLS, SRTP |
| Voice Codecs | G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM |
| Voice Features | G.168 Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC |
| DTMF Standards | RFC2833, SIP Info, In-band |
| Fax | T.38 and Pass-Through Fax |
| QoS | Port-Based Priority Control, ToS, 802.1P/Q VLAN Tagging |
| Network | DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN |
| Network Protocols | FTP, TFTP, HTTP, HTTPS, SSH |
| Management Protocol | RADIUS | — |
| Signaling |
|
|
|
|
|
