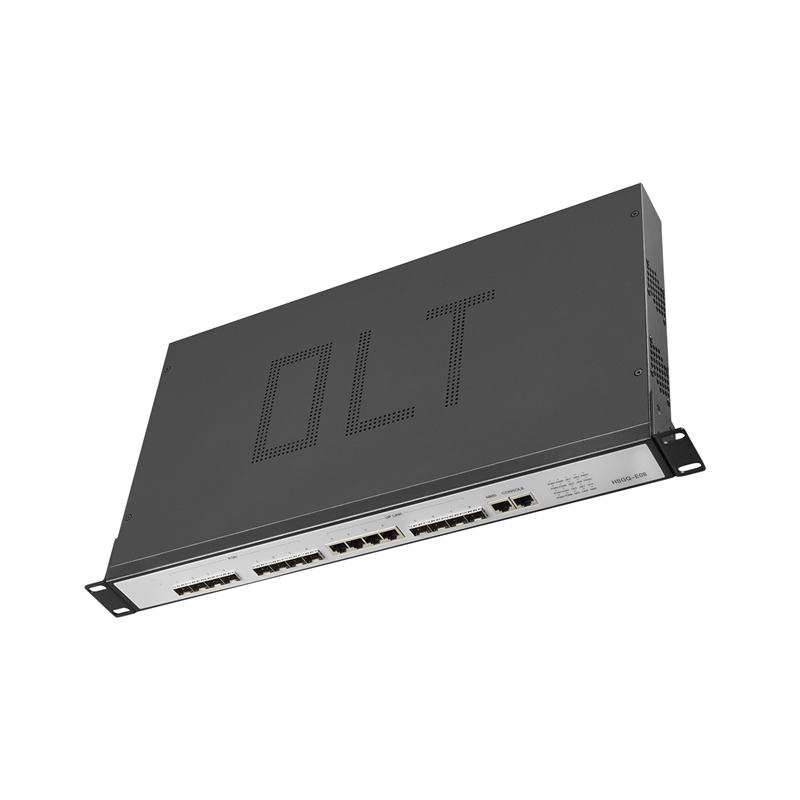

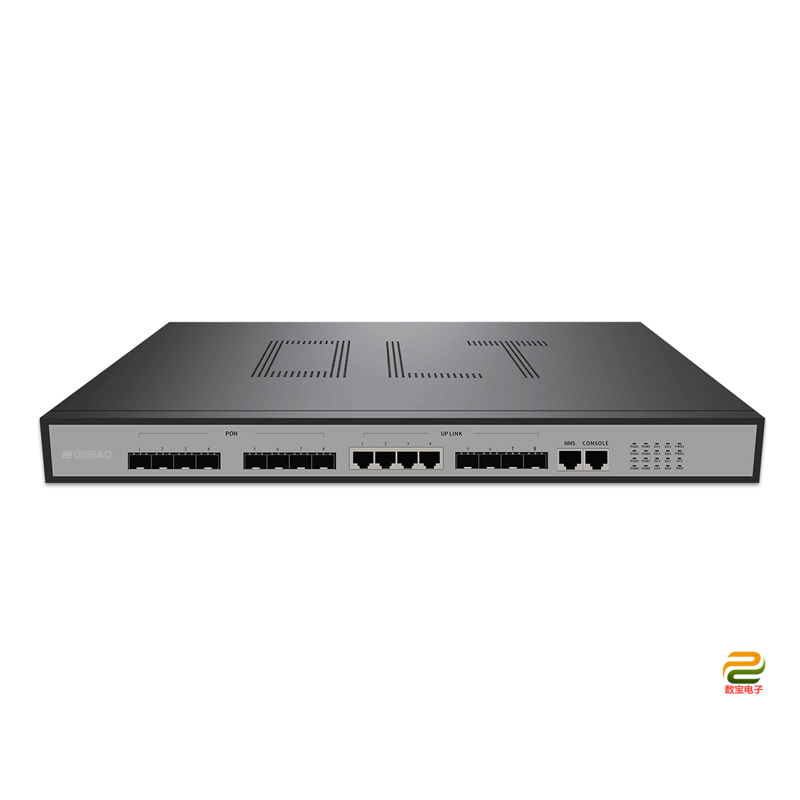

Uplink Port (Ethernet Port)

Number of Ports

8

Electrical Port (RJ45)

4 x 10/100/1000M Auto-Negotiation

SFP Interface

4 x 1000M

PON Interface

Number of Ports

8

Physical Interface

EPON SFP

Interface Type

1000BASE-PX20+, PX20+++

Maximum Split Ratio

1:64

Management Port

CONSOLE

Local Management (Serial Port)

Out-of-band / In-band Management Port

Remote and Local Management

DDR

512M

FLASH

32M

Dimensions

Product Dimensions 442mm × 260mm × 44mm

Packing Dimensions 520mm × 372mm × 87mm

Weight

3.95kg

Power Supply

AC: 100V～240V AC 47/63Hz

Maximum Power

<52W

Operating Environment

Operating Temperature

-20~75°C

Storage Temperature

-40 to 85°C

Relative Humidity

5-90%

Management Method

Command Line (CLI), WEB, SNMP/NMS

Key Capabilities

1. Port status, performance monitoring, configuration management

2. L2 switching configuration management: VLAN, port mirroring

3. PON side configuration: DBA bandwidth allocation, ONU authentication, CTC 3.0 related features

4. Alarm functions, CTC 3.0 alarms, ONU online/offline alarms, system exception alarms

5. System log

6. Protocol support: RSTP/MSTP, DHCP, IGMP

L2/3 Switching & Routing

Supports port VLAN (tagged/untagged), VLAN translation, QinQ, protocol VLAN

Supports RSTP Rapid Spanning Tree, MSTP Multiple Spanning Tree Protocol

Supports MAC address related functions, static MAC configuration, blackhole MAC address table

Supports port performance statistics, supports 15-minute/24-hour statistics

Supports port mirroring

Supports ACL packet filtering

Supports QoS, based on port, MAC, VLAN, COS, etc.

Supports storm control

Supports multicast management (snooping/proxy), 1K address pool

Supports port isolation (PON isolation group and Uplink isolation group)

Supports port link aggregation

Supports static routing

Supports 512 host routes

Supports 64 subnet routes

Supports DHCP Snooping/Relay/Server, option 82

Supports DHCPv6 option 18/37

Supports uplink port loop detection

PON Section

Complies with IEEE802.3ah EPON protocol

Supports DBA dynamic bandwidth allocation

Supports standard OAM and extended OAM (CTC 3.0)

Supports ONU automatic registration, manual binding and authentication, ONU whitelist/blacklist

Supports LOID authentication

Supports dynamic ranging

Supports downstream data encryption

Supports P2P function

Supports PON port loop detection

Supports rogue ONU detection

Supports PON DDM information reading / RSSI / ONU optical power list

Supports ONU batch upgrade

Supports batch configuration of SFU port VLAN on ONU

System Section

Supports ONU status alarms, alarm types required by CTC 3.0

Supports system online upgrade

Supports configuration saving and automatic provisioning

Supports in-band and out-of-band management methods

Supports user management

Supports SSH, supports DNS configuration

Supports SNMP/NMS network management

Supports frp

Supports WEB management, supports displaying topology diagram on WEB page

Supports IPv4/IPv6 access control management
