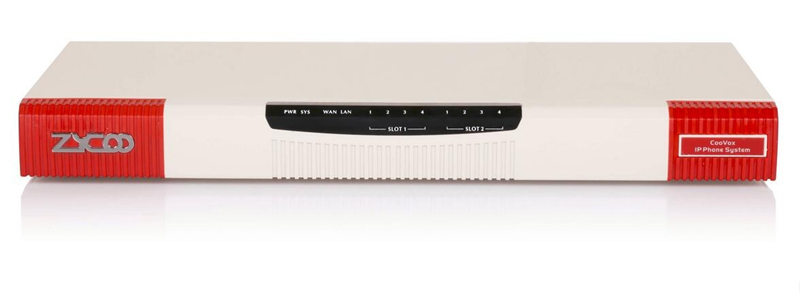

The CooVox Series IP-PBX is a versatile IP voice communication system. It includes all features of traditional PBX systems such as caller ID and auto-attendant, plus advanced capabilities including remote extension registration, audio conferencing, and distributed networking. It is ideal for enterprises with up to 50, 100, 200, 500 or 600 extensions, improving communication efficiency and enhancing business value.

Upgraded Models: T100 / T100S / T200 / T600

Built on the SIP standard with a modular design, the product supports network data transmission via analog, GSM and WCDMA modules. It enables hybrid networking of analog and IP phones, supporting direct analog phone connections and SIP-based access for IP phones and IAD devices. It can connect to PSTN or private network voice switching equipment via GSM, WCDMA, analog trunks or broadband SIP trunks.

CooVox series devices integrate VoIP telephony, virtual fax, audio conferencing, call back, call recording, busy lamp field (BLF), paging and intercom functions. They effectively improve enterprise deployment and communication efficiency, helping to enhance business value.

Call Features

Caller ID

Video Calling

Paging & Intercom

Call Transfer / Park / Routing

Call Back

Three-Way Calling

Call Groups

Call Forward / Hold / Waiting

Call Waiting Tone

Call Queues

Call Routing

PBX Features

Busy Lamp Field (BLF)

Direct Inward Dialing (DID)

Smart Direct Lines

Audio Conferencing (up to 20 parties)

Auto Attendant

Interactive Voice Response (IVR)

Direct Inward System Access (DISA)

Call Recording

Voicemail to Email

Blacklist

Phonebook (LDAP Synchronization)

Auto Provisioning for IP Phones

Multi-Language Support

Skype for SIP Support

Microsoft Lync Integration

Customizable Function Keys

Web Dialing / Web Extensions

Web-Based Recording Playback

System Capacity

100 Registered Users

1GB DDR3 RAM

8GB SD Card

Call Recording: 36,000 mins (.gsm); 4,000 mins (.wav)

Voicemail: 36,000 mins (.gsm); 4,000 mins (.wav)

Codecs & Protocols

Audio Codecs: G.722, G.711 (a-law, u-law), G.729, G.726, GSM, Speex

Video Codecs (Passthrough): H.261, H.263, H.263+, H.264

DTMF: RFC2833, SIP INFO, In-band

Protocols: SIP (RFC3261), IAX2

Network Features

VLAN

Firewall

SNMPv2

DHCP Server

IPv4 & IPv6 Support

UDP / TCP / TLS Transport

Static / Dynamic / PPPoE Connectivity

VPN Server (L2TP / PPTP / OpenVPN / IPSec)

VPN Client (L2TP / PPTP / OpenVPN / N2N / IPSec)

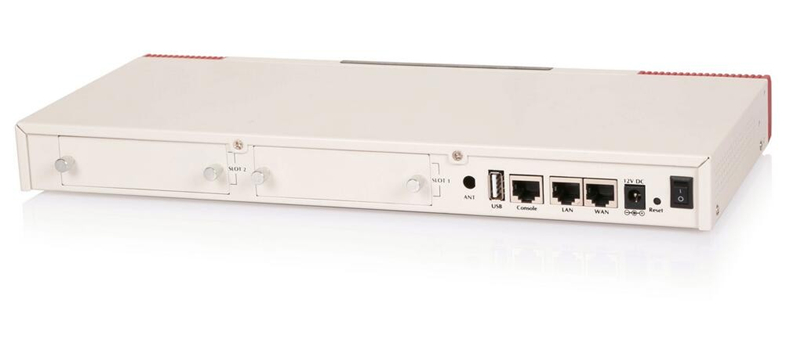

Hardware Specifications

2 x Network Ports

1 x Power Port

1 x USB Port

1 x Reset Button

1 x Console Port

Trunk Interfaces: 8 (Analog / GSM / WCDMA)

Typical Power Consumption: 1.5W

Max Power Consumption: 17.5W

Power Input: AC 100 ~ 240V

Power Output: DC 12V / 2.0A

Environment

Operating Temperature: -10 °C ~ 45 °C

Storage Temperature: -30 °C ~ 65 °C

Operating Humidity: 10 ~ 80% non-condensing
