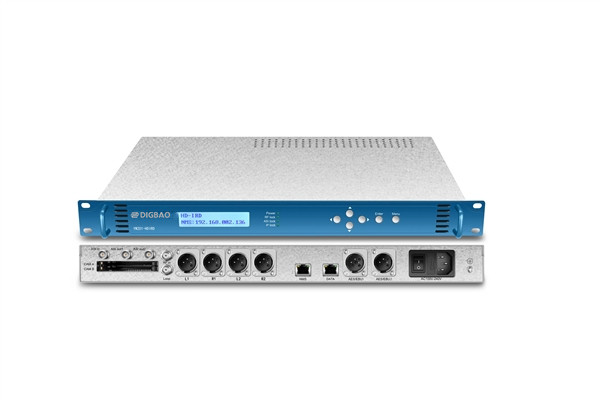

DVB-S/S2

Input

1×RFInput，1xRFEncircle 75Ω

Input frequency

950~2150MHz

Input level

-25~ -65 dbm

Symbol rate

1~ 45Msps

FEC

All ratios that are compatible with the standard

LNB power supply

13V, 18V or off, 22KHz

Constellation chart

QPSK、8PSK

Roll-off coefficient

0. 2、0.25、0.35

DVB-T/T2 Input

1×RF输入，1xRF环出 75Ω

Input frequency

44~1002MHZ

Input level

-20 ~ -100dbm

Modulation method

DVB-T:QPSK、16/64 QAM DVB-T2:QPSK、16/64/256 QAM

Bandwidth

6/7 /8 MHz

Carrier mode

DVB-T:2K/8K DVB-T2：1K/2K/4K/8K16K/32K

Conserved sequence interval

DVB-T: 1/4、1/8、1/16、1/32 DVB-T2：1/4、1/8、1/16、1/32、1/64、1/128

FEC

DVB-T：1/4、1/8、1/16、1/32 DVB-T2：1/2、3/5、2/3、3/4、4/5、5 /6

DVB-C Input

1×RF input, 1xRF output 75Ω

Input frequency

48~862MHz

Input level

45~75dbuV

Modulation method

16/32/64/128/256QAM

ASI Input/Output

Output interface

2×BNC，75Ω

enforce standards

DVB-ASI，EN50083-9

Output bit rate

≤200Mb/s

Input interface

1×BNC，75Ω

enforce standards

DVB-ASI，EN50083-9

Input bit rate

≤120Mb/s

TS over IP

Interface

1×RJ-45，10/100 Base-T

Effective bit rate

90Mb/s（100 Base-T）

Frame length

(1-7) X188 bytes adjustable

Transmission Protocol

UDP/RTP, Unicast (Singlecast), Multicast (Multicast)

Audio decoder

Standard

MPEG-1 layer I/II，MPEG-2 layer II,MPEG-2 AAC,MPEG-4 AAC LC 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3

Simulated audio output

Interface

Two sets of XLR standard Cardioid plugs

Output audio mode

Left，Right，Dual Mono，Stereo

Digital audio output

Interface

2-channel AES/EBU standard XLR connectors

Local and remote management

Interface

1×RJ-45, 10/100 Base-T network management interface

Remote control

HTTP Web

Local control

Front panel buttons and LCD control

Equipment upgrade

IP

Physical specifications

Volume

450*280*44mm

Weight

净重3KG

Power supply

AC 90V～250V，50/60Hz

Power consumption

＜24W（不含LNB供电）

Working temperature

0 ~ 45℃

Storage temperature

-10 ~ 60℃

Humidity

10% to 90% (non-condensing)
