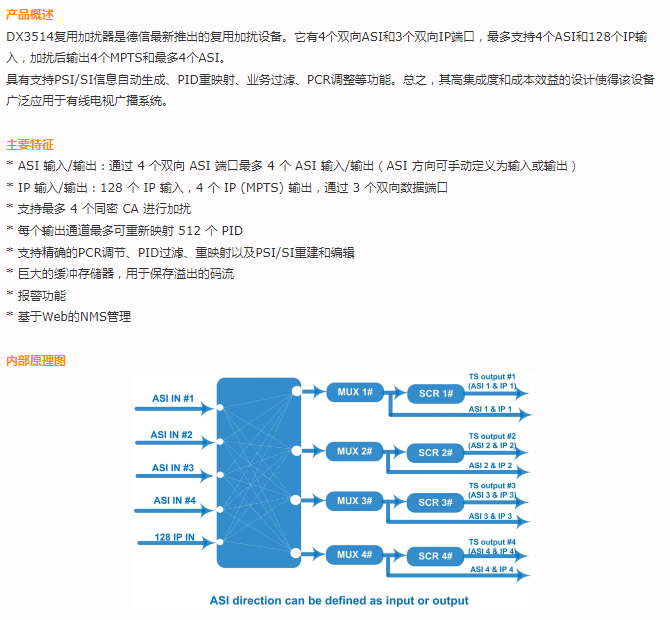

DX3504/3514 IP Multi-channel ASI Bidirectional Multiplexer
Product Overview
The X3504IP multiplexer is the latest digital television broadcasting front-end system multiplexer, featuring 4 bidirectional ASI and 3 bidirectional data ports for TS output. The DX3504IP multiplexer can multiplex up to 4 ASI inputs and 768 channels.
The number of IP inputs multiplexed to 4 MPTSASI outputs is determined by the ASI input (the ASI port can be used as either input or output). The DX3504IP multiplexer has the function of automatically generating PSI/SI information. PID remapping, service filtering and PCR adjustment
Overall. In conclusion, its high integration and low-cost design have enabled this device to be widely applied in cable television broadcasting systems.
Main features
ASI Input/Output: Up to 4 ASI inputs/outputs can be achieved through 4 bidirectional ASI ports (ASI can be manually defined as either input or output)
IP Input: A total of 768 IP inputs are provided via UDP/RTP (256 IP inputs are provided through GE1, GE2 and DATA ports respectively)
IP Output: 4 IP streams (MPTS) are output via GE1, GE2 and DATA ports using UDP/RTP.
IP supports bypass output
Support accurate PCR adjustment, PID oil wave, remapping, PSI/SI reconstruction and editing
A huge buffer memory, used to store the overflowed code stream
Network management system based on the network management

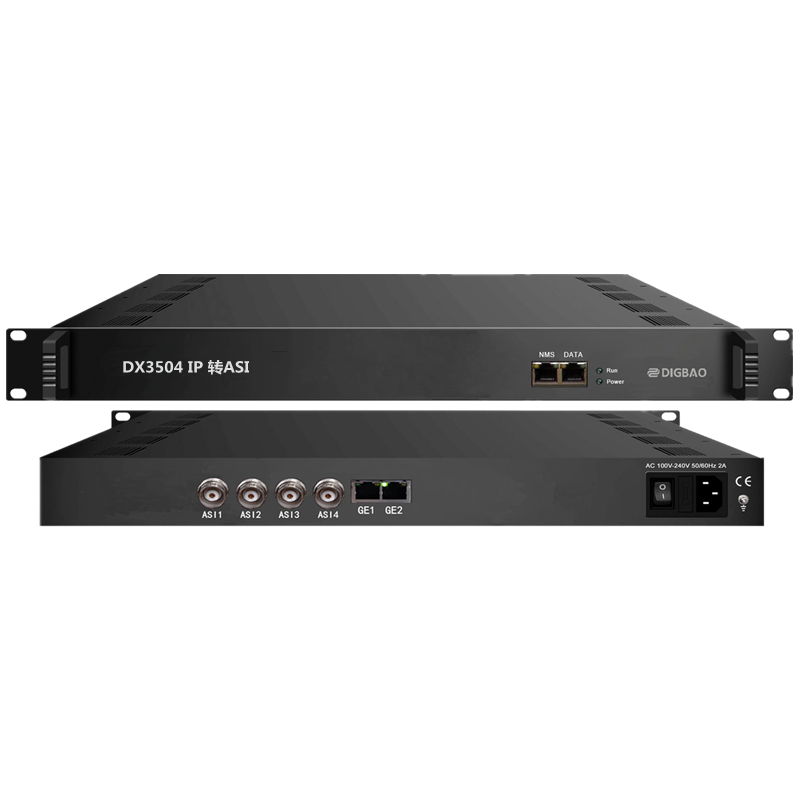

DX3504 IP Multiplexer
Product Overview
DX3504 IP Multiplexer is a latest multiplexing model for digital TV broadcasting head-end system with TS output through 4 bi-direction ASI and 3 bi-direction data ports. It can multiplex up to 4 ASI and 768 IP inputs to 4 MPTS, and the amount of ASI output is based on ASI input (ASI port can be used as input or output). DX3504 IP multiplexer has the functions of auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system.
Key Features
* ASI in/out: max 4 ASI input/output thru 4 bi-direction ASI ports (ASI direction can be defined as input or output manually)
* IP input: 768 IP inputs over UDP/RTP in total (256 IP inputs thru GE1, GE2 and DATA port respectively)
* IP output: 4 IP (MPTS) out over UDP/RTP thru GE1, GE2 and DATA port
* Support bypass output
* Support accurate PCR adjusting, PID filtering, re-mapping and PSI/SI rebuilding and editing
* Huge buffer memory for saving the overflowing code stream
* Web-based NMS management

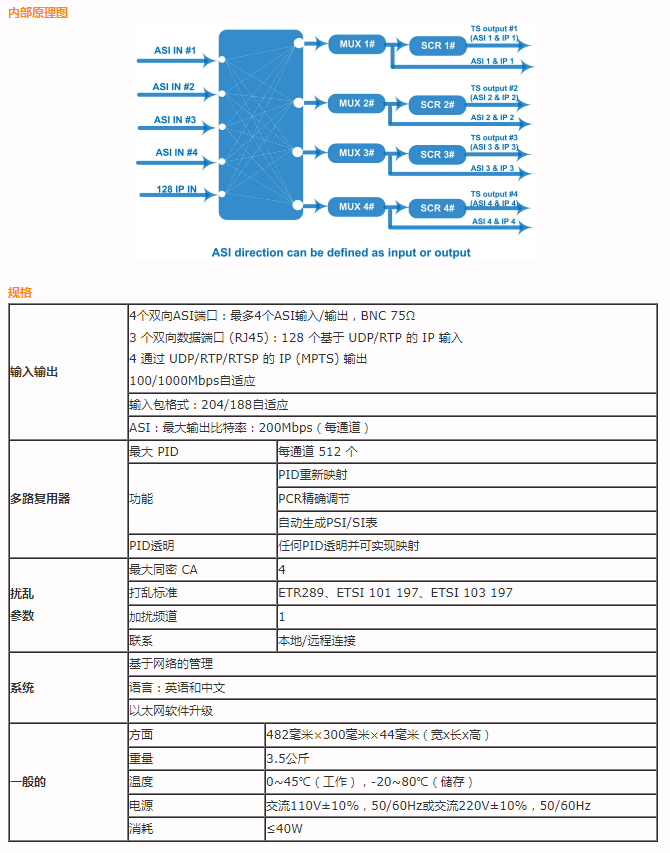

Principle Chart
Specifications
Input / Output | 4 bi-direction ASI ports: max 4 ASI input/output, BNC 75? 3 bi-direction Data ports (RJ45) 768 IP inputs over UDP/RTP (256 IP inputs thru GE1, GE2 and DATA port respectively) 4 MPTS outputs over UDP/RTP thru GE1, GE2 and DATA port 100/1000Mbps self-adaption for all data ports |
Packet format | 204/188 self-adaption for input, 204/188 is settable for output |
Output TS Mode | bytes/packets |
Re-multiplex | Max PID numbers | 748 PID numbers for GE1 |
748 PID numbers for GE 2 |
748 PID numbers for DATA port and 4 ASI ports together |
Functions | PID re-mapping |
PCR accurate adjusting |
Automatic generating PSI/SI table |
PID transparent | PID transparent and mapping achievable |
System | Web management:10/100M NMS port |
Language: English and Chinese |
Ethernet software upgrade |
General | Dimensions | 482mm×300mm×44mm (WxLxH) |
Weight | 3.5kg |
Temperature | 0~45℃(operation), -20~80℃(storage) |
Power supply | AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz |
Consumption | ≤40W |
