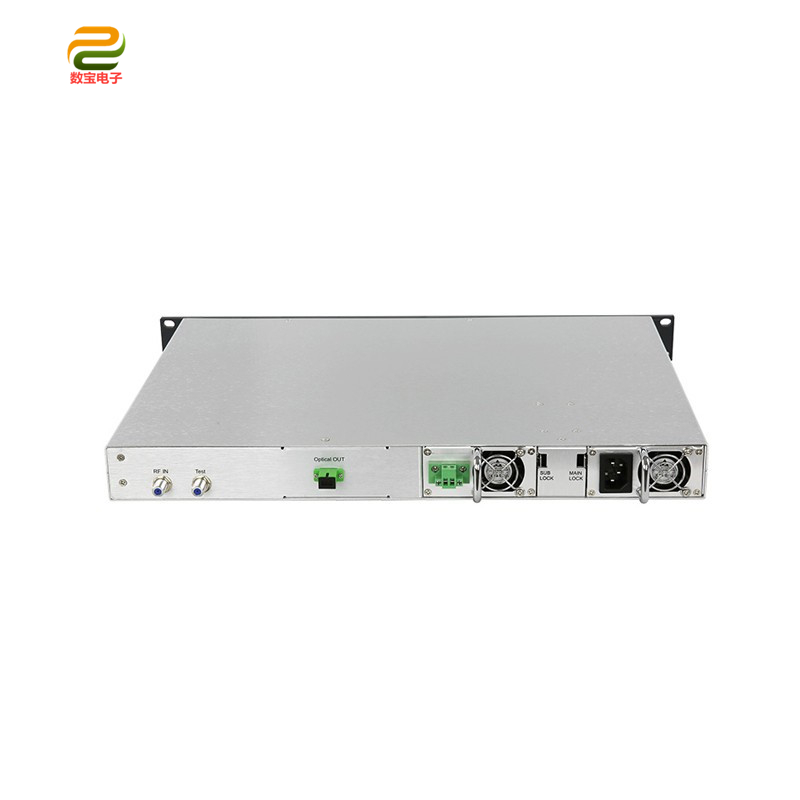

The HKD-LT1310/3000 optical transmitter is designed according to the CATV standard. It modulates the CATV RF amplitude signal into 1310nm/1550nm optical signals, and then transmits them through single-mode optical fiber to the optical nodes in the HFC network. It is mainly used for medium-sized network transmission of TV signals and can be combined with multi-port high-power optical amplifiers for the construction of fiber-to-the-home (FTTH) networks. The LT3000 optical transmitter is equipped with a reliable and stable optical output power circuit and a pump laser thermal electric cooler temperature control circuit to ensure the best equipment performance. The professional heat dissipation structure design, intelligent temperature-controlled fans, and low power consumption make it an ideal choice for building CATV secondary network signal transmission.

We have selected high-performance DFB lasers from internationally renowned brands. These lasers feature narrow spectral lines, excellent linearity and high output power.

The advanced multi-frequency point radio frequency pre-distortion technology is adopted. The driving circuit employs radio frequency power automatic processing technology, which can automatically optimize the driving level, ensuring that the C/CTB, C/CSO and C/N indicators always remain at the optimal values.

32-bit ARM processor, capable of efficiently coordinating the working states of all modules in the machine, and accurately monitoring and controlling all operating parameters.

Laser temperature stabilization circuit (ATC) and optical power output stabilization circuit

(APC) ensures the optimal performance of the laser.

47 - 862 MHz (customizable to 1000 MHz) operating bandwidth.

A dual-module structure is reserved, which can accommodate additional functional modules such as optical transmitter, EDFA, optical receiver, and RF switch, enabling the device to serve multiple purposes.

Modular structure, facilitating the expansion of equipment functions and maintenance; Standardized with complete network management interfaces, in line with SNMP network management protocol;

The power supply can achieve dual power hot backup. It is fixed by a snap-on mechanism and can be pulled out with one click. The operation is convenient and the fixation is firm. The voltage options are 220V, 110V and 48V.
