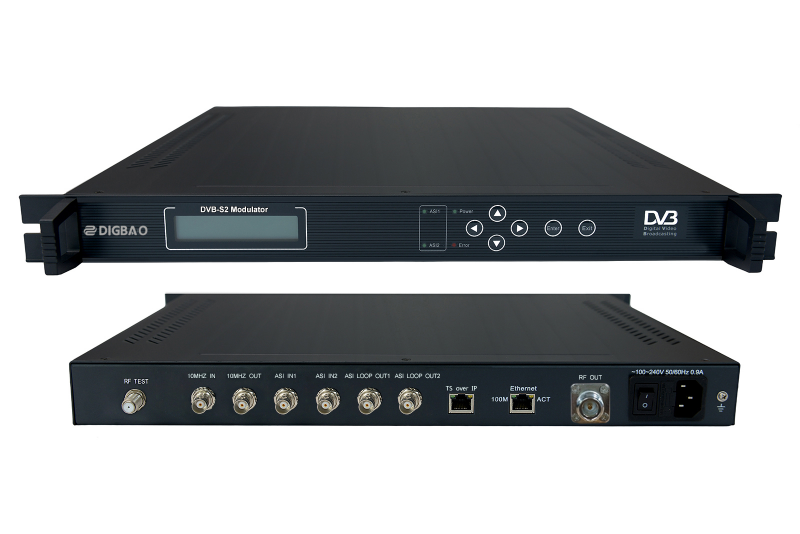

8PSK/DVB-S2 Modulator (950-2150MHz)
Product Overview
The DVB-S2 modulator adopts advanced frame structure, channel coding and modulation technologies.
Under the same transmission conditions, it provides 50% higher transmission capacity than DVB-S,
with superior receiving performance at the same spectral efficiency.
This modulator complies with DVB-S2 (EN302 307), the second-generation standard for digital video broadcasting over satellite communications in Europe.
It supports 2×ASI or 1×IP input and outputs signals via 8PSK/DVB-S2 modulation,
making it one of the core devices for terrestrial wireless and satellite modulation applications.
Features
u Compliant with DVB-S2 (EN302 307) and DVB-S (EN300 421 standards);
u Supports DVB-S/S2 8PSK input;
u 2×ASI or 1×IP input with hot backup support;
u Real-time monitoring of input and output signals;
u Supports Chinese/English LCD display, front-panel keypad operation and remote network management;
u High-reliability design, dedicated for equipment room headends, ensuring stable operation.
Technical Specifications
Input | ASI | DVB compliant, BNC interface |
IP | 100Mbps RJ45, TS over IP/UDP |
Packet Format | Supports 188/204-byte transport stream packets |
Output | Modulation | 8PSK/DVB-S2 |
RF Frequency | 950–2150MHz |
Symbol Rate | 17.2–40Mbaud/s |
FEC Coding | FEC Code Rates |
DVB-S: 1/2, 2/3, 3/4, 5/6, 7/8 |
DVB-S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 |
Input Data Rate | 1.0–108Mbps |
Channel Data Rate | 1–56Mbps |
MER | ＞38dB |
BER | 0 |
Attenuation Range | 0–20dB (0.5dB step) |
Impedance | 75Ω |
NMS | Ethernet | 10/100M RJ45 |
General | Dimensions | 482mm×280mm×44mm |
Environment | 0–45℃ (operating); -20–80℃ (storage) |
Power | 100–240VAC, 50Hz, 25W |
Ordering Guide
DVB-S2 | 2×ASI/IP Input, RF/8PSK/DVB-S2 Output (950–2150MHz) |
