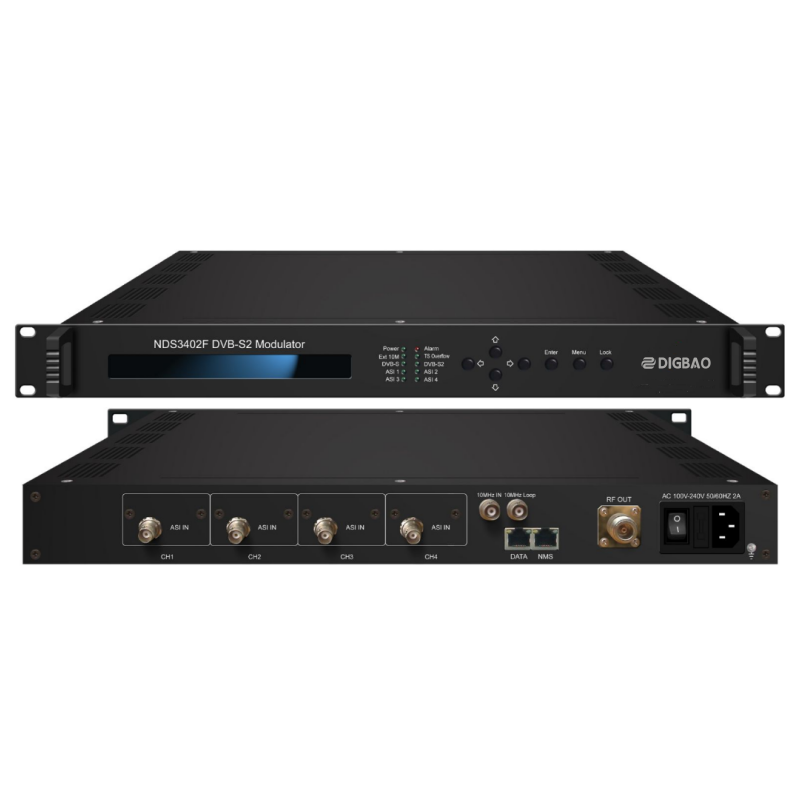

DVB-S2 Modulator (QPSK HD, IF 50~960MHz)
1 Product Overview
The IF DVB-S2 QPSK Modulator (IF 50~960 MHz) is a high-performance modulator developed in accordance with the second-generation digital video broadcasting satellite standard DVB-S2 (EN302 307). The device converts input signals via ASI or IP into digital signals and outputs them in RF (DVB-S2) format. It supports BISS scrambling, local or remote device management, LCD display and button operation. Featuring high cost-performance, high integration and strong performance, this equipment is widely used in broadcasting, interactive services, news gathering and other satellite modulation applications.
2 Product Features
v Fully compliant with DVB-S2 (EN302 307) and DVB-S (EN300 421) standards
v 4 ASI inputs with hot backup support
v Supports 100M IP input signal
v Adopts OCXO with frequency stability up to 0.1ppm
v Supports 1 external reference clock input
v Supports BISS scrambling
v Supports local and remote management
v Output frequency range: adjustable 50~960MHz, 1KHz step
v Supports LCD display / button operation and network management (NMS)
3. Technical Specifications
ASI Input | 4 ASI inputs with hot backup support |
Supports transport stream in 188-byte packet format |
Interface: BNC, Impedance 75Ω |
IP Input | 1×IP Input (RJ45, 100M) |
10MHz Input | 1×10MHz Reference Clock Input (BNC Interface) |
RF Output | Frequency: 50~960 MHz, 1KHz step |
Output level attenuation: -31.5 dBm~0 dBm (0.5dB step) |
MER≥40dB |
Interface: N-type, Impedance 50Ω |
Channel Coding & Modulation | Standard | DVB-S | DVB-S2 |
FEC Type | RS+Convolution | BCH + LDPC |
FEC Code Rate | 1/2, 2/3, 3/4, 5/6, 7/8 | QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 |
Constellation | QPSK | QPSK, 8PSK |
Roll-off Factor | 0.2, 0.25, 0.35 | 0.2, 0.25, 0.35 |
Symbol Rate | 0.5~45MBauds | QPSK: 0.5~45Mbauds
8PSK: 0.5~30MBauds |
BISS Scrambling Mode | Mode 0, Mode 1, Mode E |
General | Dimensions | 482mm×410mm×44mm |
Weight | 4.3kg |
Temperature | 0~45℃ (Operating), -20~80℃ (Storage) |
Power Supply | 100-240VAC, 50Hz/60Hz |
Power Consumption | <25W |
