SD/HD Digital TV Decoder & Receiver
1. Product Overview
The IRD-DH3605C digital TV decoding receiver runs on Linux and complies with DVB-C standard QAM modulation. It integrates cable digital TV signal acquisition and descrambling, converting signals to IP stream output (including UDP multicast, HTTP unicast, and RTSP output). Clients can directly play the descrambled clear streams. This product supports encrypted channels with one authorized broadcasting smart card, and can descramble up to 30 SD/HD channels into clear streams and convert them to network output. It also supports user-defined video programs, making it widely used in IPTV systems for hotels, hospitals, enterprises, public institutions, etc.
2. Key Features
* Supports 5 RF CATV inputs for simultaneous multi-channel descrambling and IP stream output;
* Compatible with major CA systems; descrambles up to 30 encrypted channels into clear streams using one smart card;
(Actual channel count depends on encryption mode and total PID quantity across 5 frequency points)
* Channel descrambling authorization can be enabled or disabled based on EMM signals from the CA system;
* Built-in IPTV input; supports HTTP unicast, RTSP, and UDP multicast output;
* Supports external USB storage for loop playback of files in a directory for custom channel broadcasting;
* Aggregates live signals from operator IPTV, HD encoders, streamers, Internet sources, etc.;
* Equipped with remote cloud management for remote control via network connection;
* Supports optional input modules: DTMB/DVB-C, DVB-S/S2 (2 modules per group).
3. Technical Specifications
Ethernet Port | Quantity | 2 ports (1× 100M + 1× Gigabit) |
Type | 10/100/1000 Base-T, RJ-45 standard interface |
Protocol | TS Over IP: UDP; NMS: UDP |
DVB-CI | Descrambling: DVB-CSA |
Smart Card Slot: ISO7816 standard |
CI Interface: PCMCIA |
Video Output | HDMI: 1920×1080@30p, 1280×720@25p, 1280×720@29.97p |
Audio Output | Unbalanced stereo: BNC interface |
Video Decoding | MPEG-2 |
Audio Decoding | MPEG-1 Layer 2 |
Input Section | Tuner Input | 5 groups: DVB-S/S2 or DVB-C/DVB-T |
ASI Input Stream | MPEG-2, H.264/H.265 |
Decoding Standard | MPEG-2, H.264/H.265 |
Output Section | IP Output | 1 MPTS and 96 SPTS |
ASI Output | Optional |
HDMI Output | Optional |
General | Power Supply | AC: 100–240V~, 50/60Hz |
Power Consumption | <30W (Max) |
Temperature | Operating: 0–45℃; Storage: -20℃–80℃ |
Dimensions | 482mm × 240mm × 44.5mm |
Weight | 3kg |
Order Information:
1. Standard configuration: DVB-C + DVB-S/S2 input
2. Optional configuration: DTMB/DVB-C + DVB-S/S2
Note: Due to market changes and demand differences, the actual supplied product shall prevail.

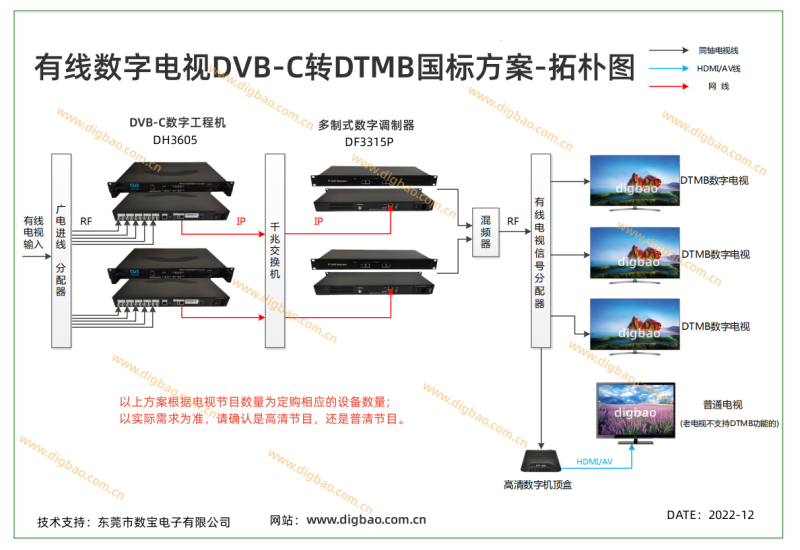

Digital TV Headend Topology (for reference only, subject to actual implementation):
