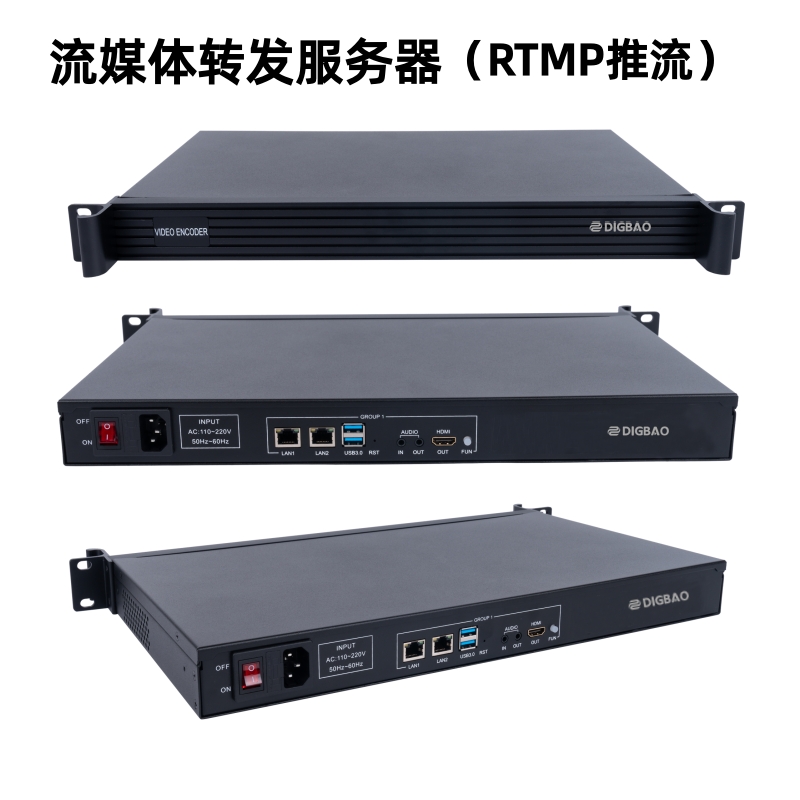

IP Embedded Streaming Forwarding Server (RTMP Push Server)

Ideal for school live streaming, front-end program streaming, corporate new product launches, auto shows and other RTMP streaming server applications.

Product Overview:

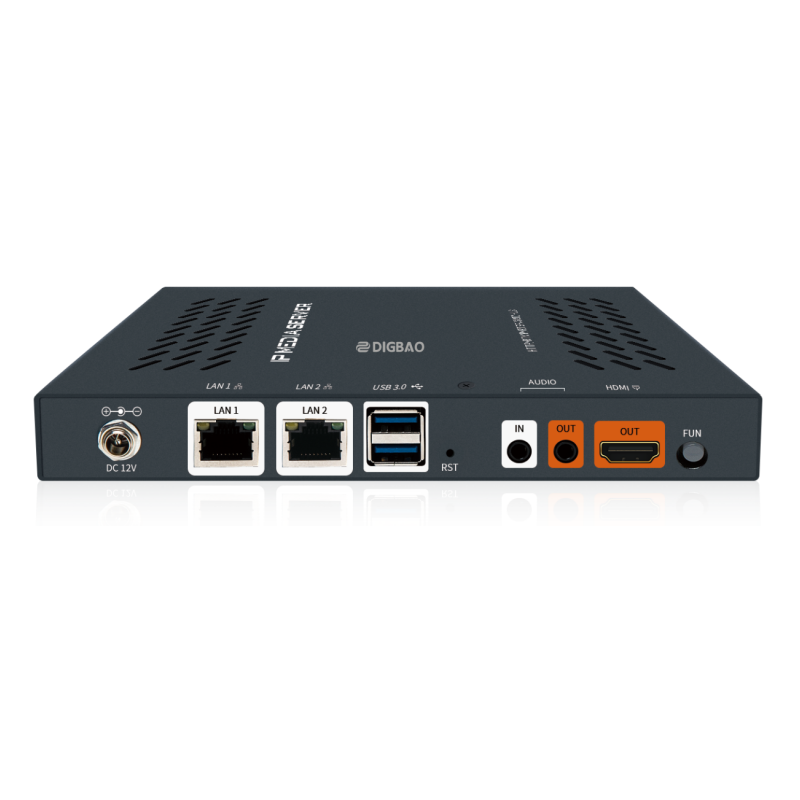

The RH102S-N streaming forwarding server is a high-performance, reliable and high-concurrency streaming server. It supports simultaneous data forwarding via two Gigabit Ethernet ports and multiple streaming protocols. Built on the latest ARM embedded hardware architecture with dual Gigabit ports for concurrent data transmission, it provides a cost-effective solution for streaming distribution scenarios and supports multi-protocol and multi-format media distribution.

Applications:

1. Traditional Surveillance Systems: Forward surveillance RTSP streams to Internet live streaming platforms

2. TV & Media Broadcasting: Convert front-end multi-protocol streams such as RTSP to RTMP/HLS for broadcast
3. Scenic/Forestry Slow Live Streaming: Convert RTSP and other protocols to RTMP/HLS for external network live broadcast
4. Campus Network Teaching: Teaching recording, intranet instruction and public online courses

5. Live broadcast and VOD systems for hotels, KTVs, etc.

6. Advertising video deployment

7. Private external live streaming for weddings and various commercial performances

8. Internal and external live broadcasting for corporate training

9. Point-to-point transmission of multiple streams over external networks

10. ONVIF device discovery and centralized management for security systems

11. Optional built-in mSATA SSD (up to 2TB) for local storage and recording

12. Network clock support; scheduled or interval-based device reboot

Network Topology

Product Features:

◆ Linux OS, user-friendly interface, easy operation and remote configuration support

◆ Embedded DSP hardware solution, high efficiency, low latency

◆ Supports concurrent access and forwarding of up to 200 channels of 3Mbps video streams

◆ Input protocols: HLS/RTSP/RTMP/HTTP/RTP/SRT, unicast, multicast

◆ Output protocols: RTMP/HLS/RTSP, unicast, multicast, RTP

◆ Compatible with major streaming platforms including Alibaba Cloud, Tencent Cloud

◆ ONVIF camera discovery in LAN

◆ Supports IPC, DVR, NVR and video encoding front-end devices

◆ Converts MP4/FLV video files from USB storage directly to RTSP/RTMP streams

◆ Supports up to 50 concurrent low-latency channels with latency around 200ms

Specifications:

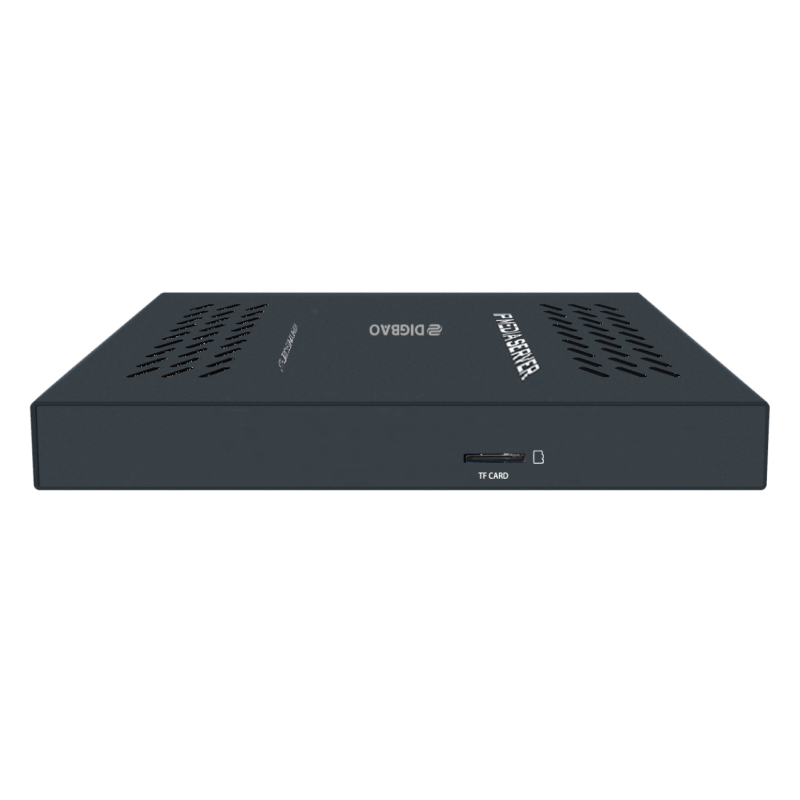

Desktop Streaming Server Dimensions: 176mm × 116mm × 28mm (L×W×H)
