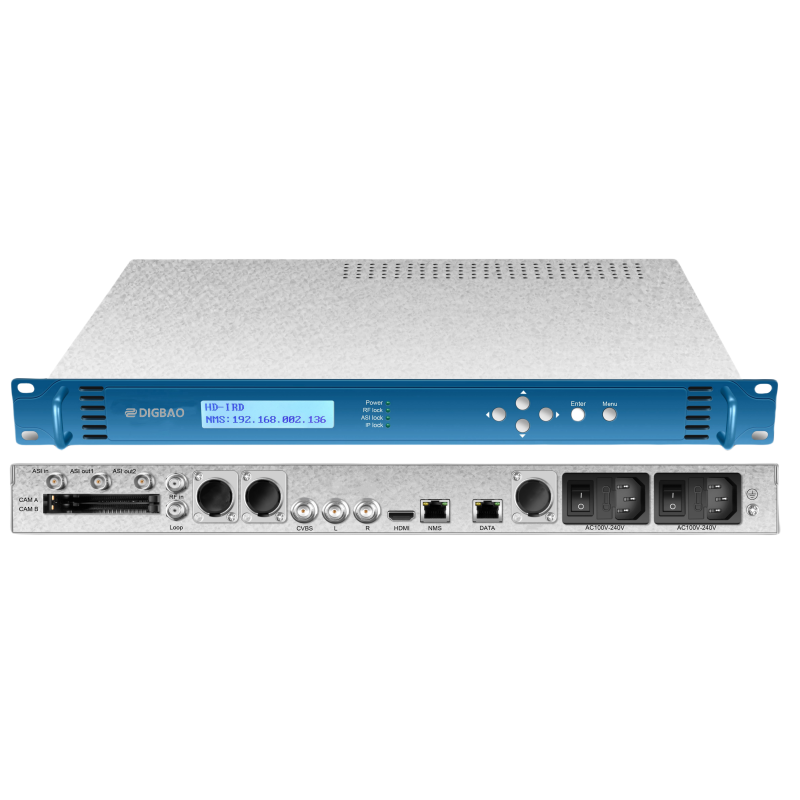

H201 HDMI SD/HD Integrated Receiver Decoder (IRD) supports AVS+/H.265/H.264/MPEG2 decoding, RF/ASI/IP input, multiple resolutions including 1080P/1080I/720P/576I/480I, and audio formats such as DRA/AC3/EAC3/AAC/MPEG. Product Features Supports multiple input modes: RF / IP / ASI Rich output interfaces: CVBS (L/R) / HDMI / ASI / IP (optional XLR AES/EBU, analog stereo) Supports AVS+/H.265/H.264/MPEG2 video decoding Dual independent CAM slots, descrambles two different signals (scrambled or clear) Supports Biss_1/Biss_E descrambling, 1× RF input with LOOP output Supports DRA/AC3/EAC3/AAC/MPEG and other audio formats Compatible with HD and SD signals Resolution can be auto-detected or manually set User-friendly interface and easy-to-operate menu system; all functions configurable via LCD B/S-based Web network management Supports real-time monitoring of input signal strength, SNR, and signal unlock alarm
Technical Specifications RF Input | DVB?S/S2 Input | 1× RF input, 1× RF loop-through, 75Ω (default) | Input Frequency | 950 ~ 2150 MHz | Input Level | -25 ~ -65 dBm | Symbol Rate | 1 ~ 45 Msps | FEC | All standard-compliant rates | LNB Power | 13V, 18V, Off, 22kHz | Constellation | QPSK, 8PSK | Roll-off Factor | 0.2, 0.25, 0.35 | DVB?T/T2 Input | 1× RF input, 1× RF loop-through, 75Ω (optional) | Input Frequency | 44 ~ 1002 MHz | Input Level | -20 ~ -100 dBm | Modulation | DVB-T: QPSK, 16/64QAM; DVB-T2: QPSK, 16/64/256QAM | Bandwidth | 6 / 7 / 8 MHz | Carrier Mode | DVB-T: 2K/8K; DVB-T2: 1K/2K/4K/8K/16K/32K | Guard Interval | DVB-T: 1/4, 1/8, 1/16, 1/32; DVB-T2: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 | FEC | DVB-T: 1/4, 1/8, 1/16, 1/32; DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | DVB?C Input | 1× RF input, 1× RF loop-through, 75Ω (optional) | Input Frequency | 48 ~ 862 MHz | Input Level | 45 ~ 75 dBuV | Modulation | 16/32/64/128/256QAM | ASI Input & Output | Output Interface | ASI OUT1/2 (2× BNC, 75Ω) | Standard | DVB?ASI, EN50083?9 | Output Bitrate | ≤ 200 Mb/s | Input Interface | ASI IN (1× BNC, 75Ω) | Standard | DVB?ASI, EN50083?9 | Transport Protocol | UDP/RTP, Unicast, Multicast | HDMI Output | Interface | 1× HDMI interface | Resolution & Frame Rate | 1080P60/1080P50/1080i60/1080i50/720p60/720p50/576P/576I/480P/480I | Embedded Audio | 1× stereo channel | Video Decoding | Standards | MPEG?2 / MPEG?4 / H.264 AVC / H.265 (HEVC) / AVS+ | Audio Decoding | Standards | MPEG?1 Layer I/II, MPEG?2 Layer II, MPEG?2 AAC, MPEG?4 AAC LC (2?channel/5.1ch), AC3/DRA/EAC3 |
|
|
|
