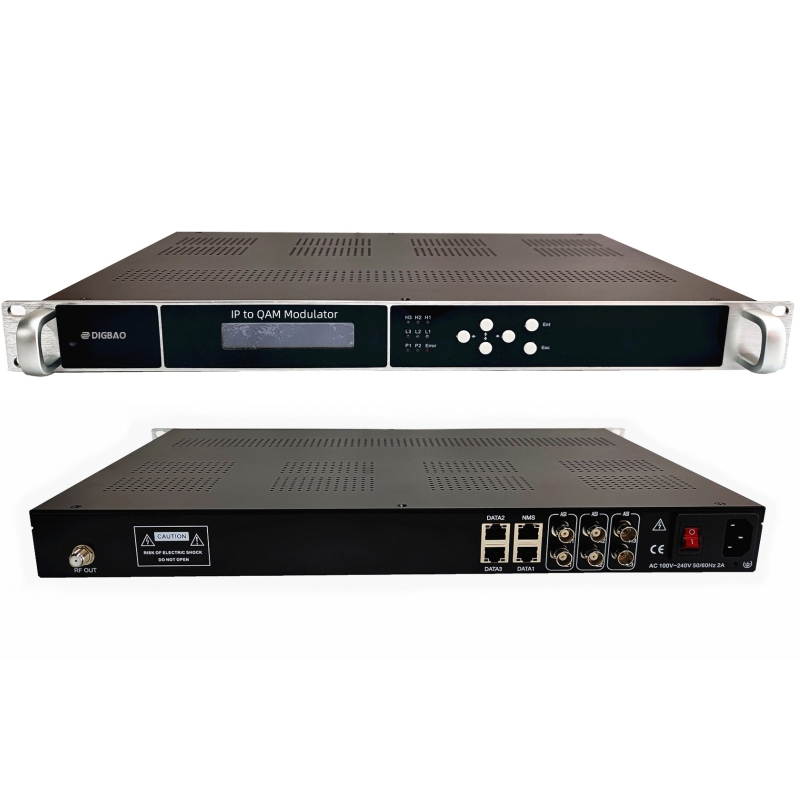

IP to Digital Modulator (IP to DVB-C DVB-T ISDB-T QAM Modulator)
Product Overview
The H3361F series is a cost-effective audio and video processing device newly developed by our company for digital TV front-end systems, supporting IP and ASI input to modulated output. It features 2 Gigabit input ports and 1 Gigabit output port, supports UDP/RTP protocol input, and is equipped with 6 ASI inputs. The device can be configured to provide 8/12/16/24 carrier outputs according to customer requirements.
With excellent performance and flexible configuration, the unit adopts a compact 1U chassis for easy installation and operation. A single device integrates a complete set of front-end system functions, making it ideal for various new-generation digital TV broadcasting systems. It supports DVB-C output, 8/16 MPTS/SPTS IP streams from Data 1 output, and multiplexes programs from IP and ASI sources to downstream equipment.
Features
* 3 Gigabit Ethernet ports for input/output
* Supports DATA1/2/3 input: UDP/RTP
* Output carriers: 8/16/24 carriers
* Optional RF standards: DVB-T/ATSC/ISDB-T/DTMB/DVB-C
* Front panel: L1/L2/L3/H1/H2/H3 indicators for 6 ASI inputs
* NMS port for management
* PID remapping and filtering
* PSI/SI editing and insertion
* Cost-effective solution for hotel TV systems
* Supports PCR correction and PCR interval adjustment
* Outstanding performance and high-strength modulation, high MER quality
* Low power consumption, high reliability, MTBF ≤ 87600 hours
* User-friendly web-based system management * Supports LCN (Logical Channel Number)
Modulation
ISDB-T Modulation
Frequency: 60~890MHz
ISDB-T RF output: 16/24 ISDB-T RF OUT ports
Standard: ARIB STD-B31 Constellation: DQPSK, QPSK, 16QAM, 64QAM
Guard interval: 1/32, 1/16, 1/8, 1/4
Transmission mode: 2K (4K/8K available upon inquiry)
Code rate: 1/2, 3/4, 5/6, 7/8
Bandwidth: 6MHz
DVB-T Modulation
Frequency: 60~890MHz
Modulation channels: 16/24 DVB-T RF OUT ports
Standard: EN 300 744 Bandwidth: 6MHz, 7MHz, 8MHz
FFT mode: 2K, 8K Constellation: QPSK, 16QAM, 64QAM
Guard interval: 1/4, 1/8, 1/16, 1/32 FEC: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C Modulation
Frequency: 60~890MHz
Modulation channels: 8/16/24 DVB-C RF OUT carrier outputs
Constellation: 32/64/128/256 QAM
Bandwidth: 8MHz
Standard: J.83A (DVB-C), J.83B, J.83C
IP Stream Input
Supports MPTS/SPTS, UDP/RTP input (DATA3)
ASI Stream
Input: 6 ASI inputs
Connector: BNC, 75Ω
Signal level: 200–800mVp-p
Packet length: 188 bytes
Max bit rate: ≤ 100Mbps per port
Input ports: Dual independent ASI ports
IP Stream Output from DATA1 supports 8 or 16 IP (MPTS/SPTS) UDP/RTP outputs
Multiplexing supports up to 180 input PIDs per channel with automatic or manual PID remapping
Accurate PCR adjustment with PSI/SI processing capability
SDT/PMT/TOT/PAT/BAT/CAT/TDT/NIT insertion
General option control and monitoring
Configuration interface: Web-based NMS Remote upgrade via network
Connector: RJ45, 100M/1000M Ethernet interface
Physical & Electrical Specifications
Voltage: 100–240V AC
Power consumption: 18–25W
Operating temperature: 0–65°C
Dimensions: 483mm (W) × 360mm (D) × 44.5mm (H)
Weight: Approx. 5KG per unit
