Smart Desktop Management System
1. Aggregates operator IPTV live signals, supports PPPoE dial-up, DHCP and other modes for operator IPTV
2. Supports various IP protocols
3. Supports MPTS/SPTS parsing
4. Supports UDP and HLS output protocols
5. Supports live TV service, VOD service, and video stream processing
6. Supports integration with hotel PMS systems, food ordering systems, etc.
7. Supports terminal management for multiple branch locations
8. Supports user management software (advertising & subtitle publishing)
9. Supports custom UI for the desktop system
10. Supports online software upgrade for terminals
11. Supports text, image and advertisement overlay
12. Supports cloud network management
Product Introduction

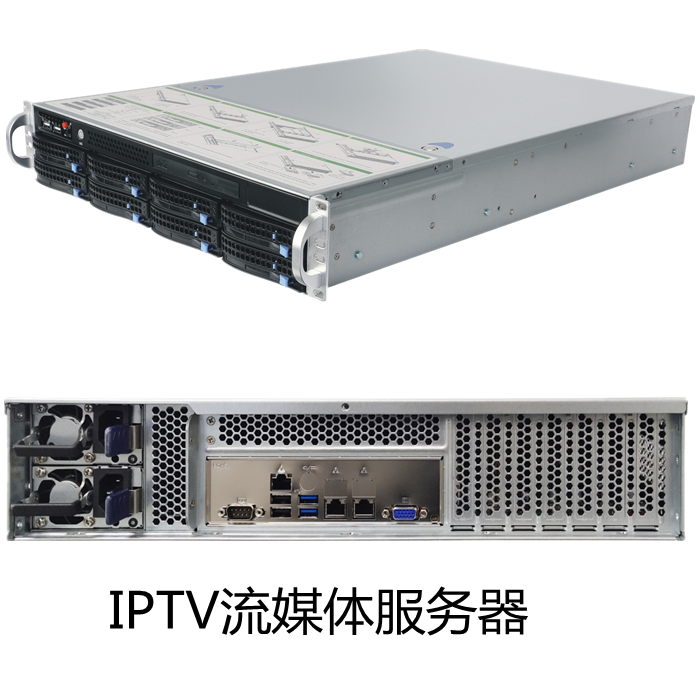

H6208S-IPTV Streaming TV Server is a highly integrated, cost-effective IPTV signal system designed for commercial TV systems. It is equipped with 8 Gigabit RJ45 (100/1000M) input ports, supports PPPoE dial-up management, and accepts IPTV signals from China Telecom, China Unicom and China Mobile, as well as multicast streams from cable TV private networks. It supports external VOD functions and can provide up to 50–60 channels of HD programs within 8Mbps (optional 40–100+ HD/SD channels). Supports UDP/RTP multicast input and UDP/HLS streaming output. Ideal for IPTV and digital TV systems in hotels, clubs, hospitals, bath centers, schools and other venues.
Product Features
1. Aggregates operator IPTV live signals, supports PPPoE dial-up, DHCP and other access modes
2. Supports various network IP protocols: RTSP, HTTP, UDP, etc.
3. Supports parsing and capture of unicast, multicast and multiplexed MPTS/SPTS sources
4. Supports UDP and HLS output protocols
5. Supports live TV, VOD, boot videos, boot images and video stream processing
6. Supports integration with hotel PMS systems and food ordering systems
7. Supports management of multiple branches and multiple groups
8. Supports end-user management and channel-change image display
9. Supports subtitle software for advertising and subtitle publishing
10. Supports custom smart desktop UI
11. Supports channel list management
12. Supports forced emergency broadcast of fire safety programs or images
13. Supports editing of program PSI/SI information
14. Supports online software upgrade for terminals
15. Supports text, image and advertisement overlay
16. Supports NIC aggregation and NIC address modification
17. Supports WAN input, UDP multicast output and VLAN input
18. Supports cloud-based web management
| Hardware Specifications & Software Functions |
| Category | Basic Parameters |
| Motherboard Chipset | Intel Dual Socket C612 Server Chipset |
| Processor Type | Intel Xeon E5-2600 V3/V4 Series CPU ×1 (dual CPUs optional) |
| Memory Capacity | Standard: 16GB DDR4 2133 RECC ×2; max up to 512GB (optional) |
| System Disk | Standard: 120GB SSD ×1 (optional upgrade) |
| Supported Drive Bays | 8 × 3.5" SATA + 1 × 2.5" SSD (optional) |
| Hard Disk Capacity | Single drive up to 2TB/3TB/4TB/6TB |
| Network Interface | Onboard Intel Gigabit NIC ×2; optional I350 4-port Gigabit or 82599 10GbE SFP+ NIC ×2 |
| Management Port | Dedicated management port, supports IPMI 2.0, remote control, hardware monitoring |
| Power Supply | Rated 550W 1+1 redundant server-grade power supply |
| Supported OS | Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x64)
Red Hat Enterprise Linux 6.1 (x86/x64)
IPTV Desktop Management Platform |
| Chassis | 2U 8-bay hot-swappable chassis |
| Dimensions | 670mm × 480mm × 90mm (D×W×H) |
| Operating Environment | Operating temperature: 18–25°C
Operating humidity: 45%–65%, non-condensing
Temperature change rate: < 5°C/h
Input voltage: 220V ±10V
Frequency: 50Hz ±0.5Hz
Good ventilation required to maintain temperature and humidity within range
Anti-static and dust-proof protection
UPS recommended to prevent server damage from power failure |
| Weight | 19–20 Kg |
| After-Sales Service | 3-year standard warranty |
