IPTV to DTMB national standard modulator * 4 carriers (digital QAM modulator, capable of supporting DVB-C/DTMB standards)
1.1 Equipment Introduction

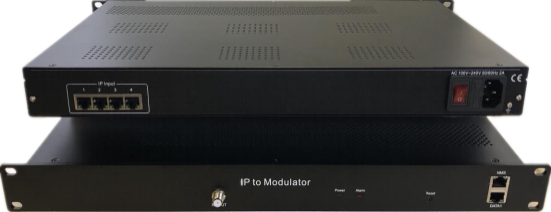

The IPTV to DTMB Modulator is a high-performance and cost-effective IP-to-DTMB national standard modulation device specially designed for commercial venues to solve the digital TV signal source problem. The rear panel of this device has 4 hundred-megabit network ports, and the front panel has 1 gigabit network port for input, and 5 network ports are all for IPTV signal input. The front panel has 1 RF output port and 1 network management port. The RF port supports 4/8 (optional) DTMB or DVB-C (optional or achievable through upgrading software) single-carrier output. This device has the characteristics of high performance and low cost, and is very suitable for various commercial venues (such as hotels, guesthouses, clubs, tea houses, etc.) to use as the digital TV front-end system.
1.2 Equipment Features
Supports 4 100Mbps IP inputs, with UDP and RTP protocols.
Supports 1 Gbps IP input or output
Supports 1 RF output interface, 4/8 DTMB/DVB-C single-carrier outputs
1U chassis, each device integrates a set of front-end equipment functions, saving the user's server room space. ※ Supports web-based network management
1.3 Equipment performance indicators
Input | 4 100-megabit IP input, 1 gigabit IP input, UDP, RTP protocols |
Modulation | Modulation standard | GB20600-2006 |
Modulation channel | 4 national standard or DVB0-C single-carrier outputs |
Constellation | 4QAM 、16QAM 、32QAM 、64QAM |
RF output | Output channel | 1 RF output interface, 4 DTMB/DVB-C single carriers, F-head, 75Ω impedance |
Frequency range | 50~900MHz ，1kHz 步进 |
Output level | -20dBm~0dBm |
MER | ≥40db |
IP output | Support 1-gigabit IP output |
System | English translation: "User interface" |
Support network upgrade |
General | Dimensions (Length × Width × Height) | 440mm×270mm×40mm |
Weight | 3kg |
Temperature range | 0~45℃(工作)；-20~80℃(存储) |
Power requirements | AC 110V±10% ，50/60Hz AC 220V±10% ，50/60Hz |
