FREESAT V7X-V7HD Satellite Receiver DVB-S/S2 H.264
| 包装清单 | 主机，遥控器，电源，数据线，说明书 | 货号 | V7X |
|---|
| 产品规格 | EU Plug(欧规),US Plug(美规),UK Plug(英规),AU Plug(澳规) | 语言版本 | 英文版（english) |
|---|
Overview
Basic Functions
1. Compliant with DVB-S/DVB-S2 satellite standards (MPEG-II/ MPEG-IV/ H.264)
2. DiSEqC1.0/1.1/1.2/1.3 (USALS)
3. Support blind search
4. PAL/NTSC conversion
5. True full color (16-bit/ 32-bit) on-screen display (OSD)
6. Support 8 favorite groups and parental lock
7. Support multi-language menus
8. Support multi-language audio
9. Multi-language DVB subtitle output
10. 3-day Electronic Program Guide (EPG)
11. Teletext output via VBI and OSD
12. USB 2.0 interface
13. Support multiple network functions

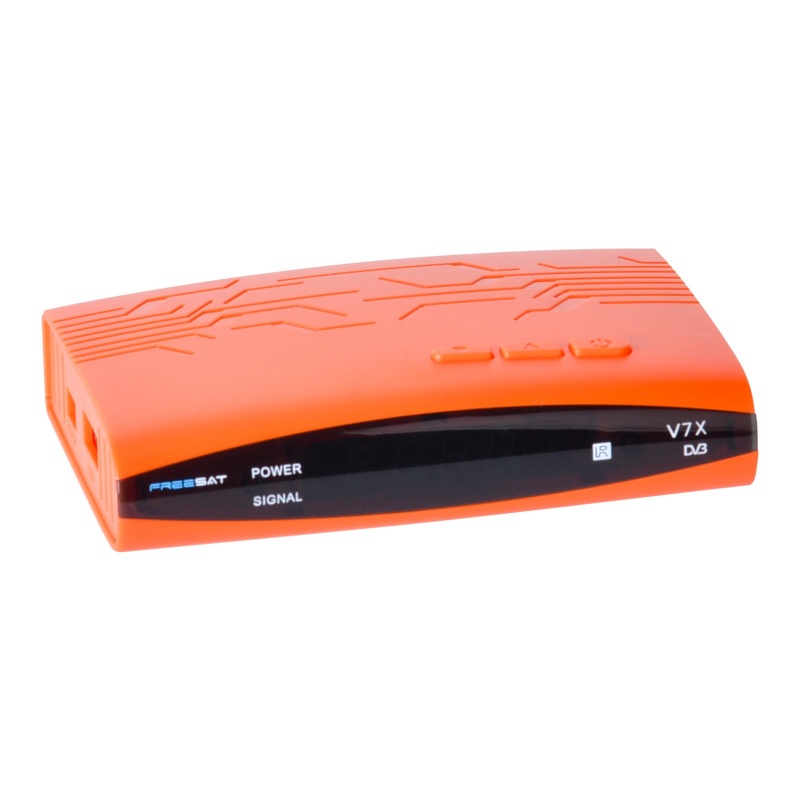

2.1 Front Panel
1. Power LED: Power indicator.
2. Signal LED: Signal indicator.
3. Display: Displays channel information. Displays local time in standby mode.

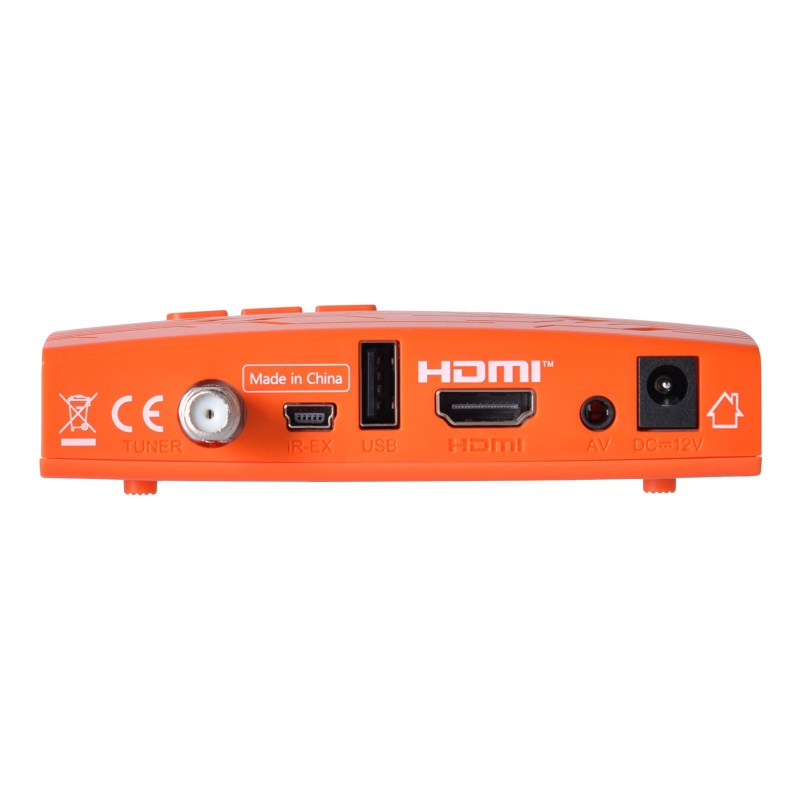

2.2 Back Panel
1. Tuner: Connect to satellite dish.
2. IR-EX: Connect to LED screen.
3. USB: One USB 2.0 host port.
4. HDMI: Connect to TV screen using HDTV cable.
5. AV: Connect to TV using RCA cable.
6. DC IN: Connect to power adapter.Technical Specifications
Main chip
3510G
Memory
512Mb RAM
Flash
64MB SPI
UI
Signal Type
DVB-S/S2
（不支持 S2X）
Software Support
BISS auto roll, Full PowerVu, DRE
CA
不支持
FunCam
Built-in, after updating FCM software, it will be activated when connected to the Internet
Cam
Support Cccam, Newcam, Fun cam
APP
Weather，APOllo，Radio, Net Link
Update
Support OTA online update and USB flash drive firmware update
languages
English/Arabic/French/Russian/Thai
Panel Display
4-digit yellow LED display
LED Indicator
Signal lock green light, standby red light, power red light
WIFI
Support USB Wifi dongle, support MT7601 and RT5370
interface
1*LNB IN，1*HDMI 2.0，1*CVBS (3-pin 3.5 mm jack)，2*USB2.0 HOST
DC IN (DC12V/1.5A)
appendix

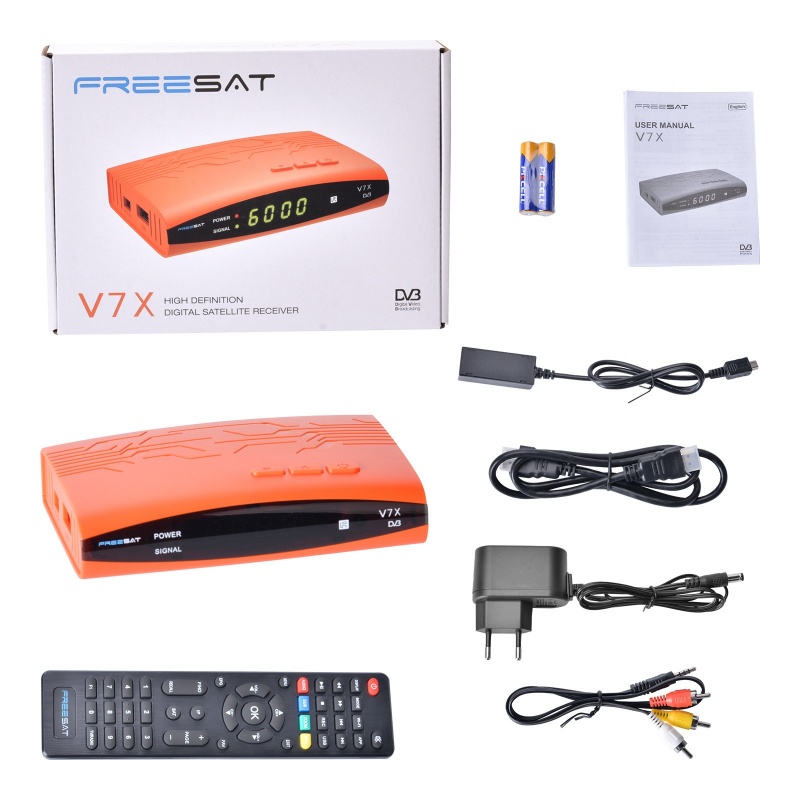

Color box, power adapter, remote control, HDMI cable, CVBS cable, remote control extension
cable, manual, warranty card, etc.
size
Outer box: 562*420*322MM 40 sets
Gross weight G.W: 15.24KG
Net weight N.W: 10.16KG
Whole machine weight: 0.341KG
Color box size: 201*142*51MM
Machine size: 110*84.3*25.7MM
None machine weight: 78G
