Location：Home>>Product
triumph
Norsat 3200F-BPF-1 滤波降频器
Product model:3200F-BPF系列
Product origin:
Release date:2023-04-25
Number of views:
Consultation hotline:18926865298
Key word:有线电视滤波器，卫星滤波器，5G抗干扰滤波器，信号过滤器，气象台，广播台，电信滤波器
Next Prev

Detailed

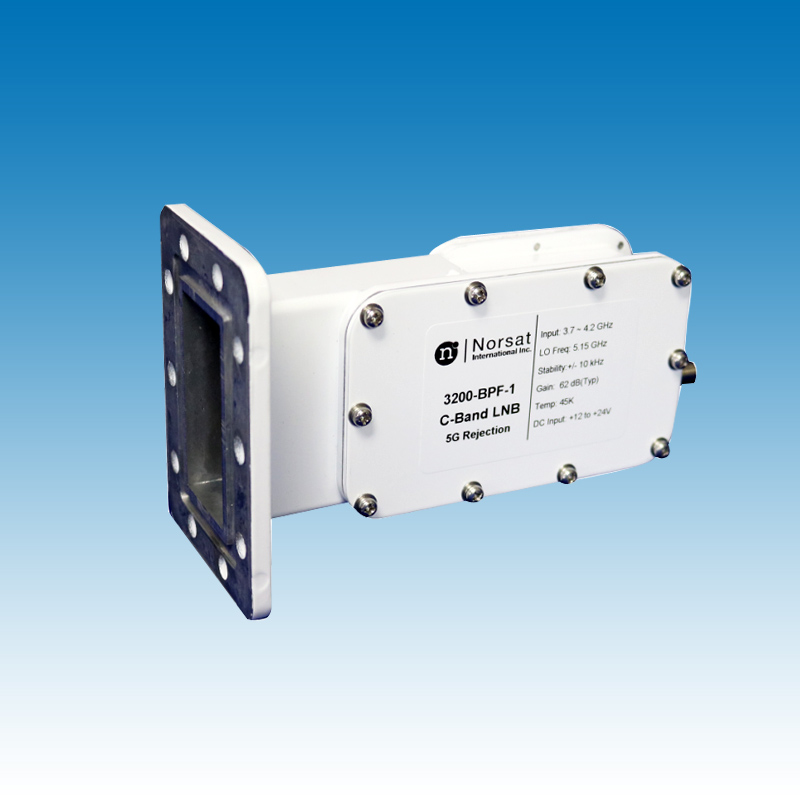

Norsat 3200F-BPF-1 滤波降频器

Norsat 3200F-BPF-1主要特征

  • C 波段 5G 干扰 LNB

  • C 波段 LNB 和带通滤波器

  • 3000-BPF 系列

  • 输入频率：3.7 – 4.2 GHz

  • 本振频率：5.15 GHz

  • 输出频率：950 – 1450 MHz

  • LO 稳定性：±25 kHz

  • 抑制范围：<3.6 GHz 和 >4.8 GHz

  • 噪声温度：最大 60K 在室温下。@CF

  • F 型 75 欧姆连接器

频段选择


3200F-BPF-13200F-BPF-23200F-BPF-33200F-BPF-43200F-BPF-53200F-BPF-63200F-BPF-73200F-BPF-8
输入频率：3.70 - 4.20 3.625 - 4.20 3.754 - 4.20 3.80 - 4.20 3.90 - 4.20 4.00 - 4.204.10 - 4.203.82 - 4.20
本振频率：5.155.155.155.155.155.155.155.15
输出频率：950 - 1450 950 - 1525 950 - 1396 950 - 1350 950 - 1250 950 - 1150 950 - 1050950 - 1330
噪声温度：< 3.6 GHz and > 4.8 GHz< 3.525 GHz and > 4.8 GHz< 3.654 GHz and > 4.8 GHz< 3.7 GHz and > 4.8 GHz< 3.8 GHz and > 4.8 GHz< 3.9 GHz and > 4.8 GHz< 4.0 GHz and > 4.8 GHz< 3.72 GHz and > 4.8 GHz
