10-Channel ASI Input Multiplexing to IP Output Gigabit Gateway (ASI(TS Stream) to IP Converter) 10ASI to IP (32/64SPTS) 10-Channel MPTS IPTV
1.1 Product Overview
The 10-Channel ASI to IP Gateway is a multi-functional receiver with 10 ASI inputs (BNC interface). It performs signal multiplexing and demodulation, and outputs in TS-over-IP (ASI to IP) format. It can receive ASI output signals from encoders, stream receivers, decoders and other devices, and supports multiplexed ASI stream input. It supports Web management and remote software upgrade for easy operation and maintenance.
The device provides 2 output modes (IP UDP SPTS/MPTS) via an RJ45 Ethernet port, with freely switchable output modes. Each mode supports different input/output configurations. With 10 input channels, each input supports an unlimited number of programs and stream sizes, and outputs via a Gigabit Ethernet port. Users can configure the device flexibly according to their actual needs, delivering excellent cost performance.
2. Product Features
2.1 Key Features
? Supports 10 independent ASI inputs and 1 Gigabit IP output
? Supports 32/64 SPTS outputs or MPTS multi-program stream output
? Supports arbitrary program port mapping
? Single input channel supports up to 32 program IP outputs; 64-program version also available (optional)
? Accurate real-time bit rate statistics and analysis for input and output streams
? Automatic configuration saving to prevent loss of operating parameters
? Supports import and export of device operating parameters for easy maintenance
? WEB network management for centralized monitoring and management by operators
? Supports online remote upgrade
2.2 Applications
The 10-Channel ASI to IP Gateway can be used in CATV headends, sub-headend signal sources or IPTV signal sources.
3. Technical Specifications
3.1 Main Technical Parameters
ASI Input | DVB-ASI | Interface | Input Q9 (BNC connector); |
Bit Rate | 1 ~ 216 Mbps |
Packet Size | Auto-detect 188/204 bytes |
TS over IP | Interface | 1×RJ-45, 100/1000 Base-T |
Effective Bitrate | ≤850Mbps |
Protocol | Supports 32/64 SPTS or MPTS output |
Local & Remote Management | Interface | 1×RJ-45, 10/100 Base-T management port |
Remote Control | HTTP Web |
Local Control | Front panel buttons & LCD control |
Upgrade | IP |
Physical Specifications | Dimensions | 44x410x300 mm |
Weight | Net 2.4Kg, Gross 2.4Kg |
Power | AC 90V～250V, 50/60Hz |
Power Consumption | 24W (excluding LNB power supply) |
Operating Temp | 0 ~ 45 ℃ |
Storage Temp | -10 ~ 60 ℃ |
Humidity | 10 ~ 90% (non-condensing) |

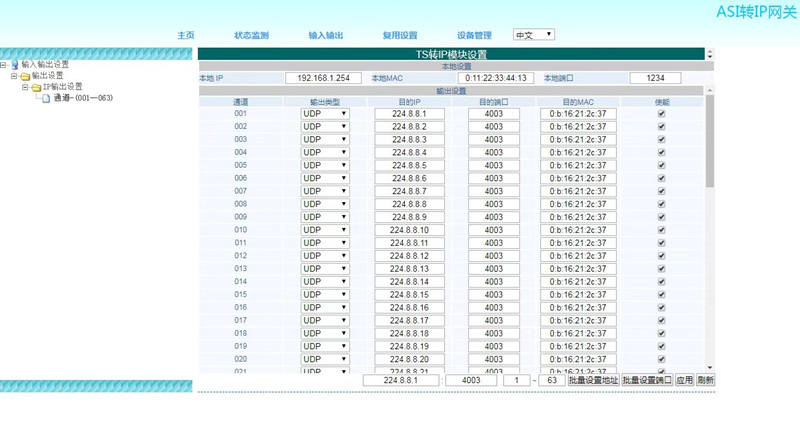

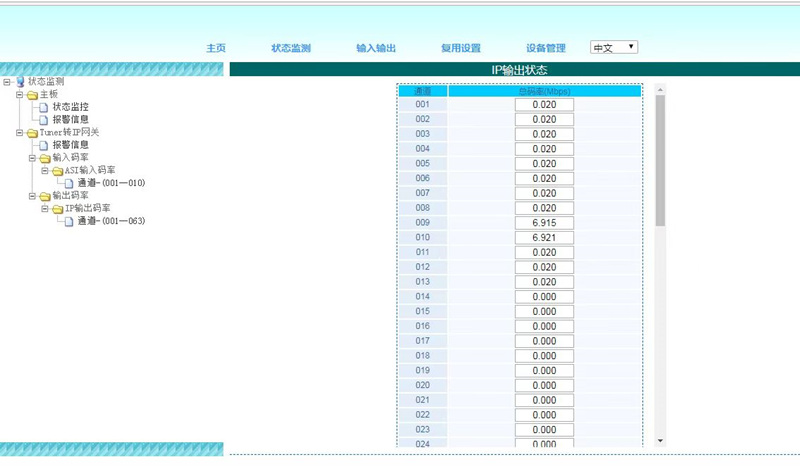

WEB Management Interface:

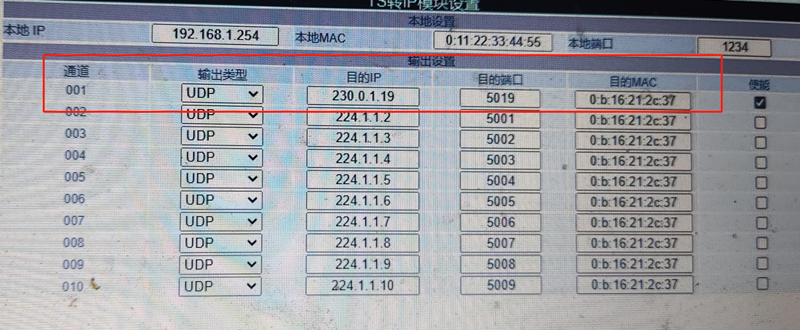

MPTS Multicast Stream Output:
