QAM Modulator (Digital TV Multiplexing & Scrambing QAM Modulator All-in-One NDS3343D)
1.1 Product Overview
Model 3343D 4-in-1 multiplexing, scrambling and QAM modulation all-in-one device is a newly developed high-integration, high-performance and cost-effective product. It supports multiple input configurations: 8×Tuner + 6×ASI, 4×Tuner + 6×ASI + 2×IP, 8×Tuner + 2×ASI + 2×IP, 4×Tuner + 2×ASI + 4×IP. After 4-channel multiplexing, 4-channel scrambling and 4-channel QAM modulation, it outputs 4 RF signals and also supports 4 IP outputs. Featuring high integration, excellent performance and low cost, it is ideal for new-generation CATV broadcasting systems.
1.2 Features
? Supports 8×Tuner+6×ASI, 4×Tuner+6×ASI+2×IP, 8×Tuner+2×ASI+2×IP, 4×Tuner+2×ASI+4×IP
? Fully compliant with DVB-C (EN300 429) and ITU-T J.83A/B/C standards
? Supports DVB Common Scrambling ETR289, SimulCrypt ETSI 101 197 and ETSI 103 197
? Supports 4-channel multiplexing, 4-channel scrambling and 4-channel QAM modulation
? Supports up to 4 SimulCrypt CA systems simultaneously
? Supports 4×1000M IP output, UDP protocol
? Supports USB plug-in
? Symbol rate: 5.0Msps~9.0Msps, adjustable in 1ksps steps
? 5 modulation modes: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
? Supports PSI/SI editing and insertion
? Excellent RF output performance, MER≥40dB
? LCD display and keypad operation
? Web-based network management
1.3 Technical Specifications
Input | 8×Tuner + 6×ASI |
4×Tuner + 6×ASI + 2×IP |
8×Tuner + 2×ASI + 2×IP |
4×Tuner + 2×ASI + 4×IP |
Multiplex | Output Channels | 4 RF outputs |
PID Remapping | 128 per channel, manual or auto |
Auto-generation of PSI/SI tables |
Scrambling | Max SimulCrypt CA | 4 |
Standards | ETSI 101 197, ETSI 103 197 |
Connection Type | Local / Remote |
Modulation | QAM Channels | 4 |
Standards | EN300 429, ITU-T J.83A/B/C |
Symbol Rate | 5.0Msps~9.0Msps, 1ksps steps |
Constellation | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM |
FEC | RS(204, 188) |
IP Output | 4×1000Mbps IP output, RJ45, UDP protocol |
RF Output | Output Channels | 4×RF output, F connector, 75Ω impedance |
Frequency Range | 30~1000MHz, 1kHz steps |
Output Level | -20dBm~0dBm per QAM carrier, 0.1dBm steps |
MER | ≥40dB |
ACLR | -55dBc |
System | LCD display, keypad control, Web NMS |
Chinese / English GUI |
Network upgrade supported |
General | Dimensions | 482mm×285mm×44mm |
Weight | 3.5kg |
Temperature | 0~45℃(Operation); -20~80℃(Storage) |
Power Supply | AC100V±10% 50/60Hz or AC220V±10% 50/60Hz |
Power Consumption | <25W |

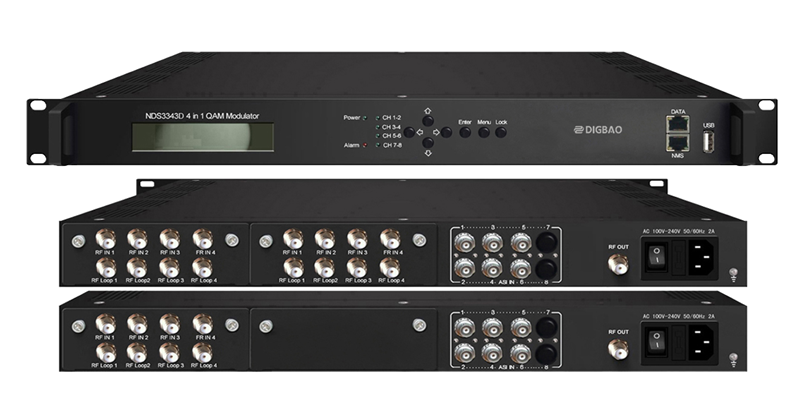

1. | LCD Display |
2. | Status LEDs | Power: Power indicator, lit when powered on Alarm: Alarm indicator, lit when fault occurs CH1/2/3/4: Signal lock indicators |
3. | Up, Down, Left, Right Keys |
4. | Enter: Confirm button |
5. |
|
|
