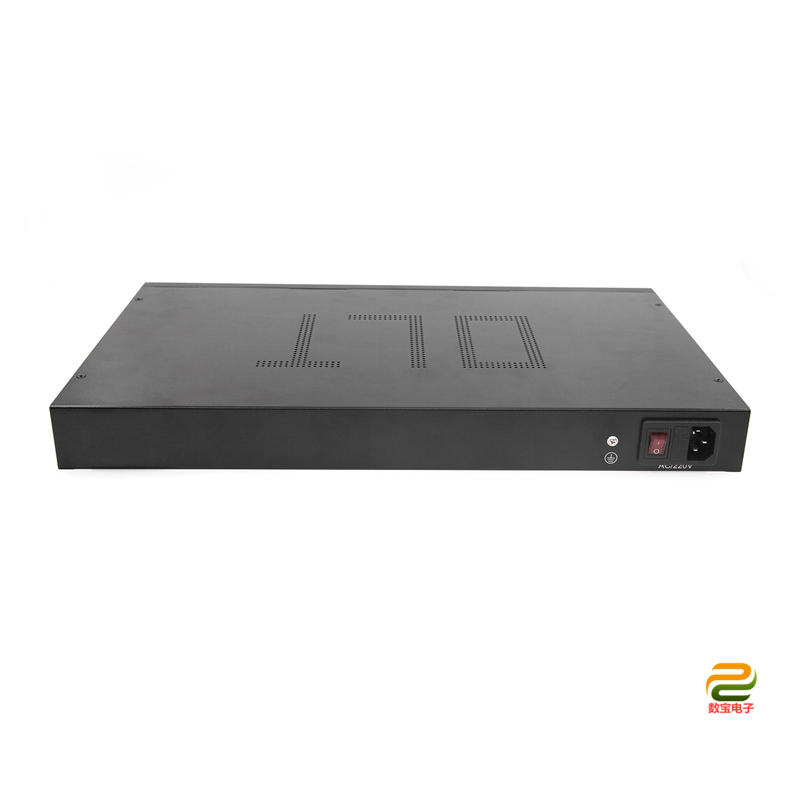

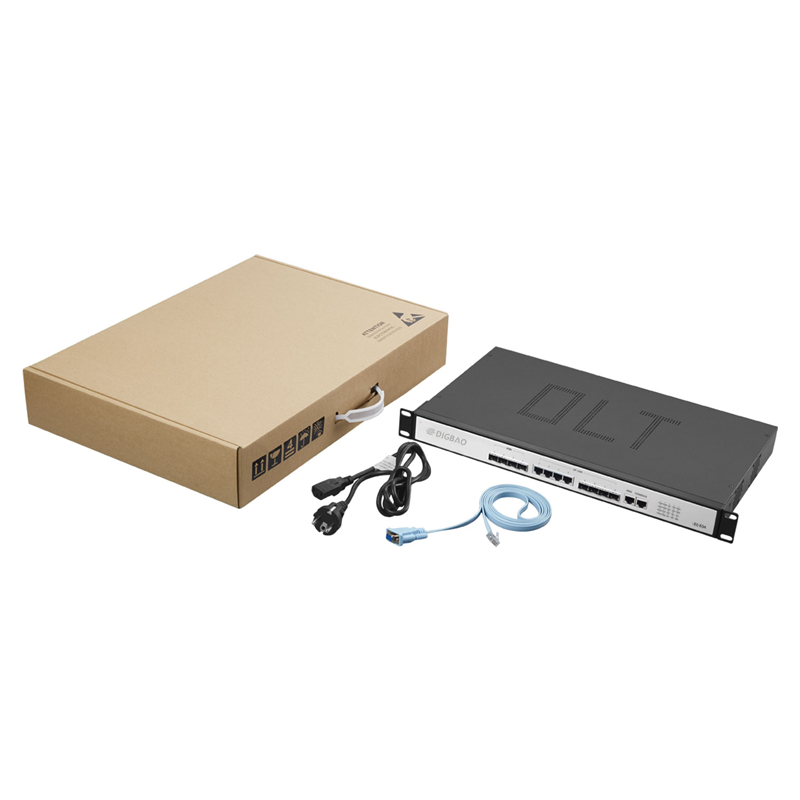

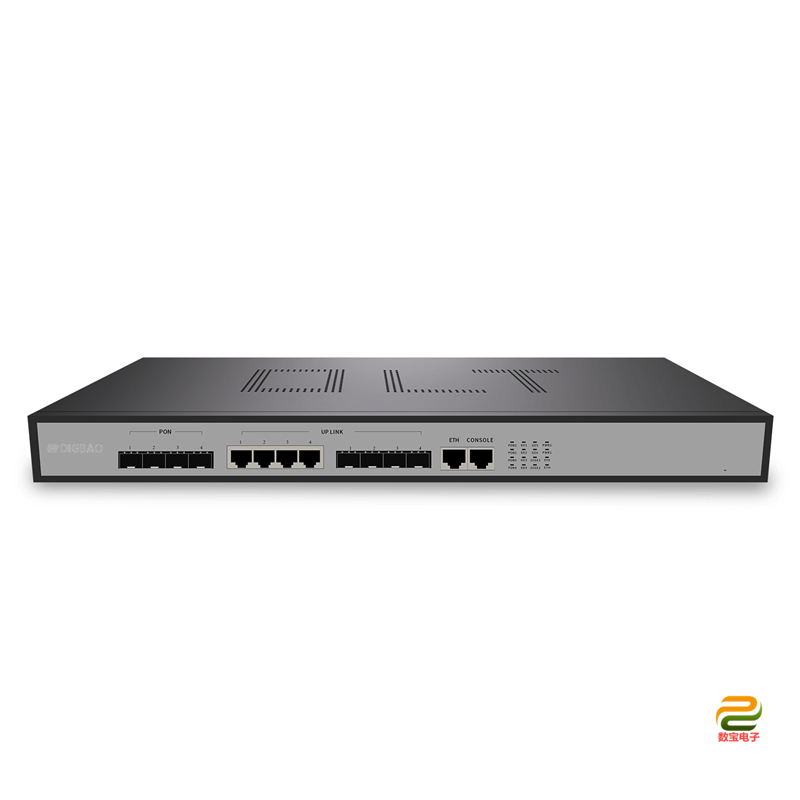

4-PON Port Gigabit EPON OLT (Fiber Server)
*1RU 19-inch rackmount
*1+1 redundant power supply
*4 fixed EPON ports
*4×10M/100M/1000M auto-negotiation RJ45 ports, 4×1.25G SFP ports
*1 console port
The EPON OLT is a highly integrated, medium-capacity standalone 4-PON port EPON OLT switching device developed by our company for carrier access and enterprise campus networking. Compliant with IEEE 802.3ah standards, the equipment provides 4 gigabit electrical uplink ports and 4 gigabit SFP uplink ports, along with 4 EPON optical downlink ports. Each EPON port supports a maximum splitting ratio of 1:64, and the system can accommodate up to 256 ONU terminals. It meets the requirements for EPON OLT equipment specified in YD/T 1475-2006 "Technical Requirements for Access Networks 3.0". Featuring high openness, large capacity, high reliability, and comprehensive software functions, it is widely used in carrier front-end network coverage, private network construction, video surveillance, enterprise campus networks, IoT, and residential fiber access network deployments.
Item | HKD-E04 |
Uplink Ports (Ethernet) | Port Count | 8 |
Electrical Ports (RJ45) | 4×10/100/1000M auto-negotiation |
SFP Ports | 4×1.25G |
PON Interface | Port Count | 4 |
Physical Interface | EPON SFP |
Interface Type | 1000BASE-PX20+, PX20+++ |
Max Splitting Ratio | 1:64 |
Management Port | CONSOLE | Local management (Serial port) |
In-band/Out-of-band management port | Remote and local management |
DDR | 512M |
FLASH | 32M |
Dimensions | Product: 442mm×260mm×44mm | Package: 520mm×372mm×87mm |
Weight | 3.95kg |
Power Supply |
|
|
|
